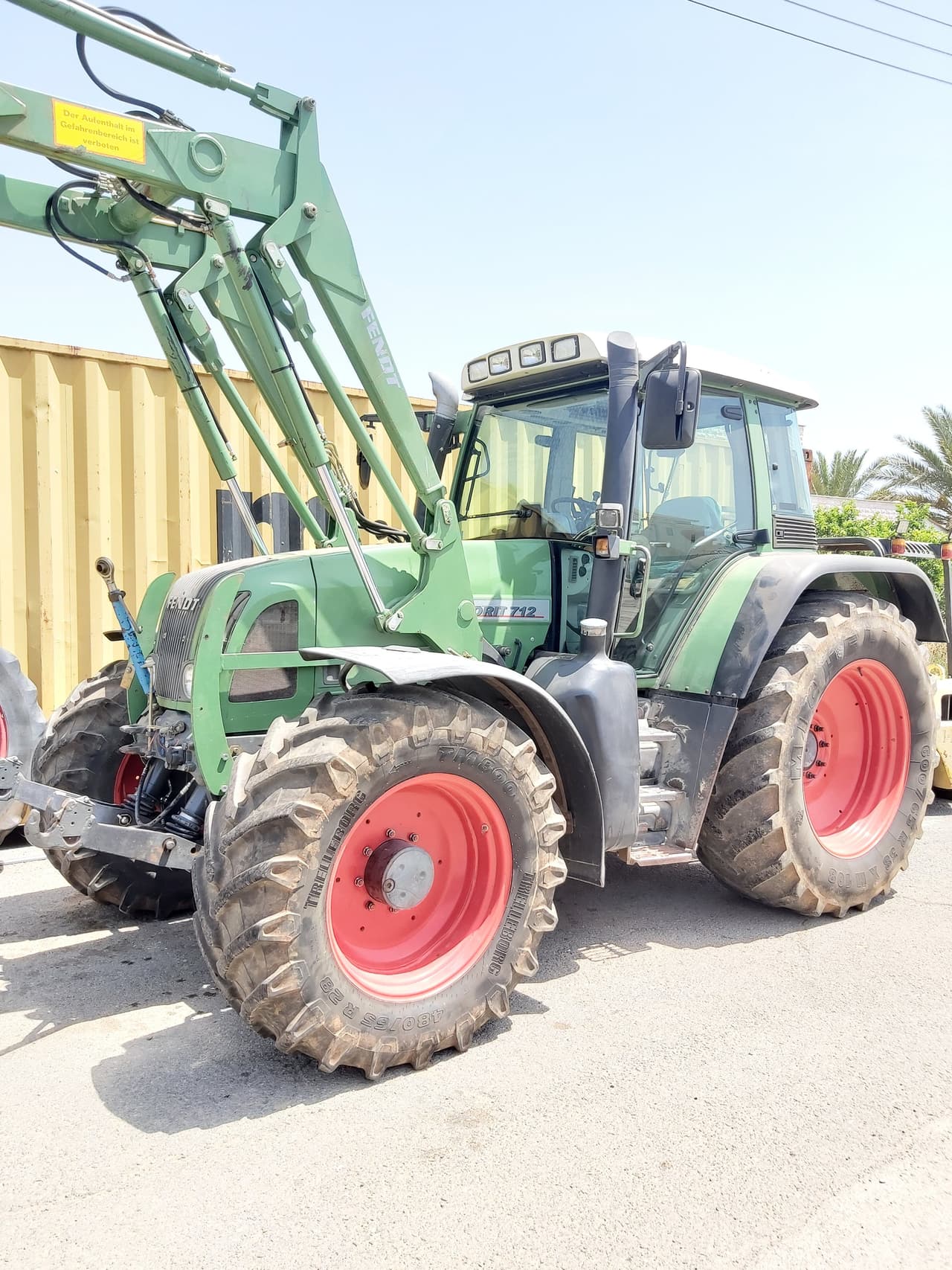

Fendt 712 Vario

Last Updated: June 2024

Overview

The Fendt 712 Vario is a versatile and powerful tractor that is equipped with a Fendt Vario continuously variable transmission (IVT). It has a robust 6-cylinder Deutz engine, the TCD 2012 L06 4V, which is liquid-cooled and utilizes turbocharged intercooling technology. With an engine displacement of 369.6 cubic inches and a bore and stroke measuring 3.976x4.961 inches, this engine is designed to deliver significant power and torque. The engine's emissions are Tier IIIa compliant through the use of an EGR (exhaust gas recirculation) system. The tractor achieves a rated power of 132 horsepower according to EC 97/98 standards, and it reaches a maximum power of 136 horsepower. The maximum torque is registered at 421.1 lb-ft at 1450 RPM, indicating its capability for heavy-duty tasks. The tractor's operating weight is 14,560 pounds, reflecting its sturdy build and capacity for challenging work conditions.
Show more...

Key Specifications

Power Output: 132 (based on EC 97/98 as it's the higher consistent value)

Transmission: Continuously Variable Transmission (IVT)

Operating Weight: 14560

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Deutz
Model
TCD 2012 L06 4V
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
OHV (Overhead Valve)
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
369.6
Bore (in)
3.976
Stroke (in)
4.961
Rated RPM
2100
Power Output (hp)
132 (based on EC 97/98 as it's the higher consistent value)

Transmission

Type
Continuously Variable Transmission (IVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
183.8
Width (in)
99.21
Height (in)
116.5
Operating Weight (lb)
14560

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
III/II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (based on presence of engine starter power)
Brake Type
-
Hydraulic System Type
Load sensing
