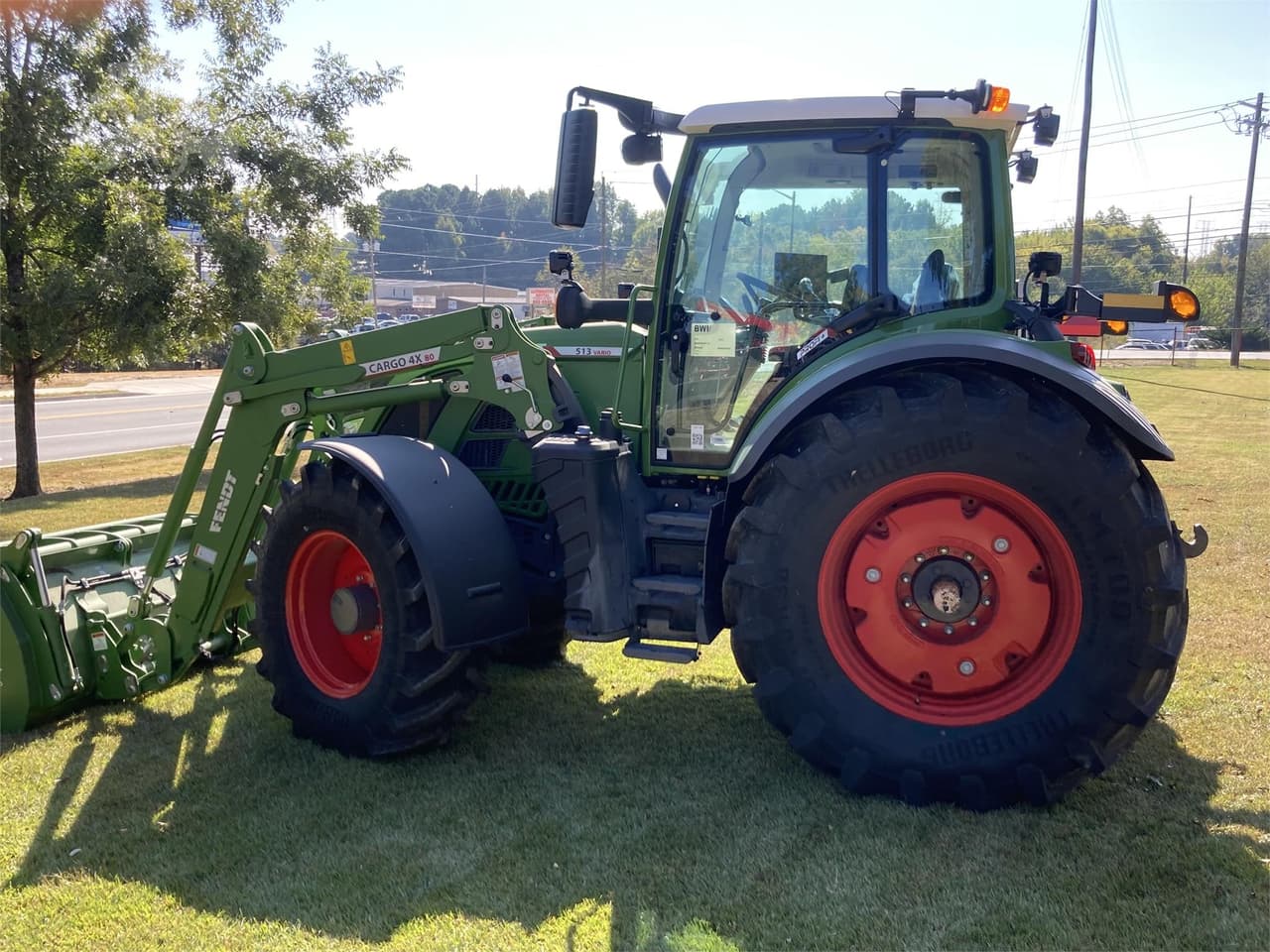

Fendt 513 Vario

Last Updated: June 2024

Overview

The Fendt 513 Vario is a utility tractor that is known for its advanced technology and performance. With a 4WD chassis and a turbocharged four-cylinder Deutz TCD 4.1 L4 engine, it provides a mix of power and efficiency, featuring an engine displacement of 246.4 cubic inches. The engine is liquid-cooled and operates at an optimal rated RPM of 2100, delivering a maximum ECE R120-certified horsepower of 131.4. The tractor's notable Vario ML90 continuously variable transmission (CVT) enables it to have an infinite number of forward and reverse gears, highlighting its versatility in a range of tasks. Its operator station is a cab type, ensuring comfort and protection for the driver. It has a substantial operating weight of 13338 lbs and offers good ground clearance of 20.9 inches. Details about the tractor’s hitch type and lift capacity, PTO speeds, brake type, and specific tire dimensions were not available.
Show more...

Key Specifications

Category: Utility

Power Output: 131.4 (ECE R120)

Transmission: Continuously variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 13338

Fuel Type: Diesel

Fendt 513 Vario vs. Similar Tractors

Power Output
Above Average
Greater than 89% of similar tractors.
Operating Weight
Average
Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
TCD 4.1 L4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
246.4
Bore (in)
3.98
Stroke (in)
4.96
Rated RPM
2100
Power Output (hp)
131.4 (ECE R120)

Transmission

Type
Continuously variable transmission (CVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
Infinite

Dimensions

Length (in)
175.3
Width (in)
98.5
Height (in)
115.4
Operating Weight (lb)
13338

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load sensing
