Fendt 512 Vario

Last Updated: June 2024

Overview

The Fendt 512 Vario is a utility tractor that embodies a combination of power and versatility, suitable for a variety of tasks in the field. It features a 4-wheel drive chassis with MFWD traction, providing reliable performance across different terrains. Steering is made easy through its power steering system. Under the hood, the tractor is equipped with a liquid-cooled, turbocharged Deutz TCD 4.1 L4 diesel engine, capable of achieving up to 128.7 horsepower. Its continuously variable transmission allows for seamless shifting and operation. The tractor's advanced hydraulics offer load-sensing capabilities, which ensures efficient power usage and responsiveness. With a significant operating weight of 13,338 pounds, the Fendt 512 Vario maintains stability and traction. Although the manufacturer start and end years, along with hitch lift capacity, are not provided, this tractor remains a strong contender in its category.

Key Specifications

Category: Utility

Power Output: 122 (EC 97/98 and ECE R120), 108.6 (ECE R24)

Transmission: Continuously variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 13338

Fuel Type: Diesel

Image Gallery

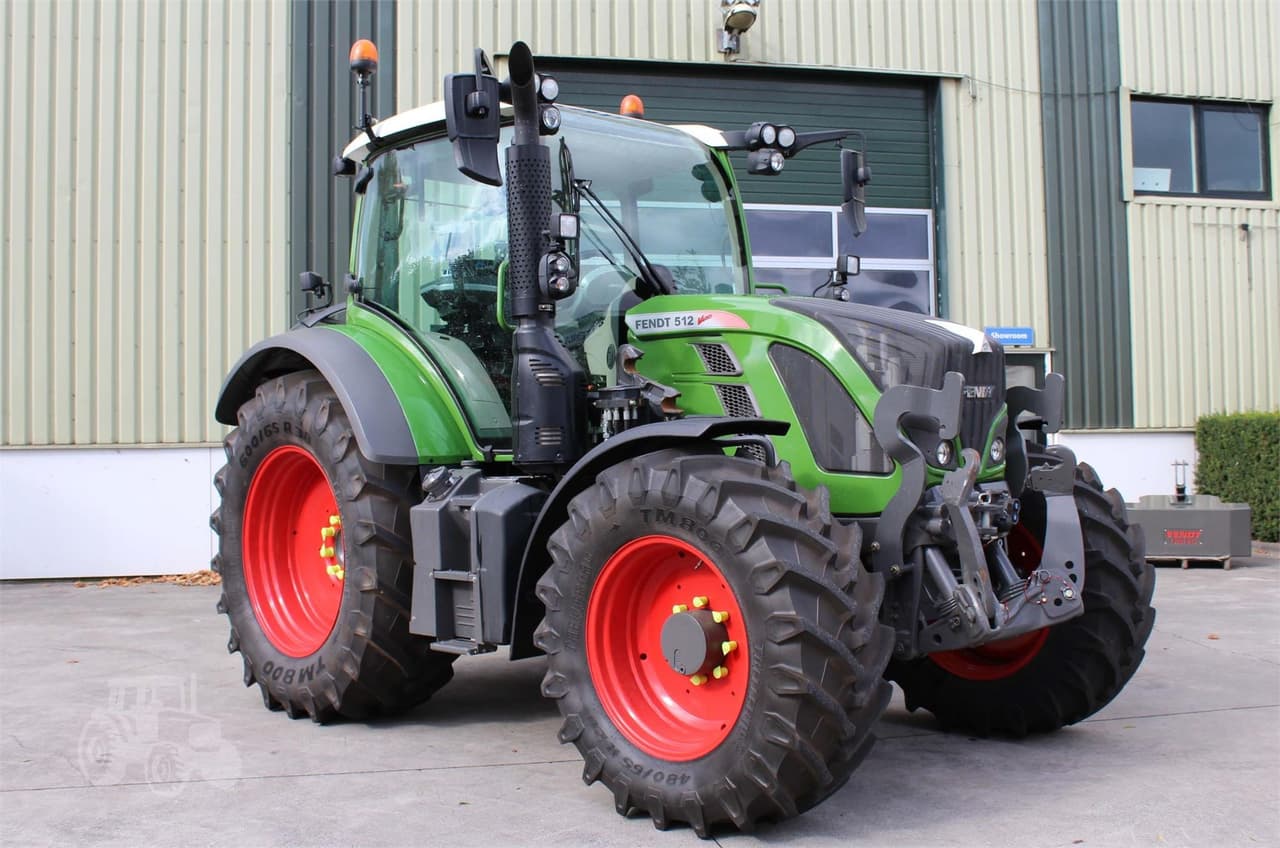

Fendt 512 Vario Tractor

Fendt 512 Vario vs. Similar Tractors

Operating Weight

Average

Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer: Deutz
Model: TCD 4.1 L4
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 246.4
Bore (in): 3.98
Stroke (in): 4.96
Rated RPM: 2100
Power Output (hp): 122 (EC 97/98 and ECE R120), 108.6 (ECE R24)

Transmission

Type: Continuously variable transmission (CVT)
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 175.3
Width (in): 98.5
Height (in): 115.4
Operating Weight (lb): 13338

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 28
Front Tire Width (in): -
Rear Tire Diameter (in): 38
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard tires (ag)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Load sensing
