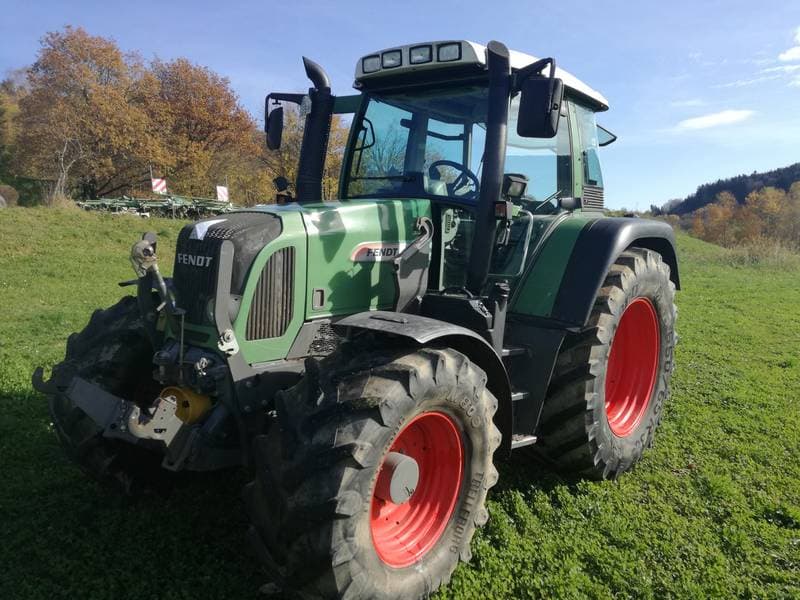

Fendt 414 Vario

Last Updated: June 2024

Overview

The Fendt 414 Vario is a row-crop tractor that embodies a blend of power and convenience. Focused primarily on agricultural applications, it boasts a 4x4 MFWD 4WD chassis, making it capable of handling a variety of terrains with ease. The tractor is powered by a Deutz 4-cylinder, 16-valve, turbocharged intercooled diesel engine with a liquid-cooling system and offers a displacement of 246.4 cubic inches. Operators can take advantage of the infinite forward and reverse gears provided by the continuously variable transmission, which can be tailored to meet various work demands. The engine's power output is rated at 128.7 hp according to ECE R24 and 142.2 hp according to EC 97/68, with a rated RPM of 2100, ensuring efficient power delivery during long working hours. The Fendt 414 Vario's practical design is complemented by its substantial operating weight of 11,949 pounds, which contributes to the tractor's stability and tractive force. The standard and optional tire configurations allow for customization based on specific field conditions. While the data provided gives an insight into the tractor's specifications, there are gaps in information, including the full range of PTO speeds, exact hitch lift capacity, and the beginning and end year of manufacture.
Show more...

Key Specifications

Category: Row Crop

Power Output: 142.2 (EC 97/68), 128.7 (ECE R24)

Transmission: Continuously variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 11949

Fuel Type: Diesel

Fendt 414 Vario vs. Similar Tractors

Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
246.4
Bore (in)
3.98
Stroke (in)
4.96
Rated RPM
2100
Power Output (hp)
142.2 (EC 97/68), 128.7 (ECE R24)

Transmission

Type
Continuously variable transmission (CVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
168.5
Width (in)
96.1
Height (in)
115.1
Operating Weight (lb)
11949

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag): Front: 540/65R24, Rear: 600/65R38. Optional tires (ag): Front: 320/85R32, Rear: 300/95R46
Manufacture - End Year
-
Hitch Type
Rear Type: III/II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load sensing
