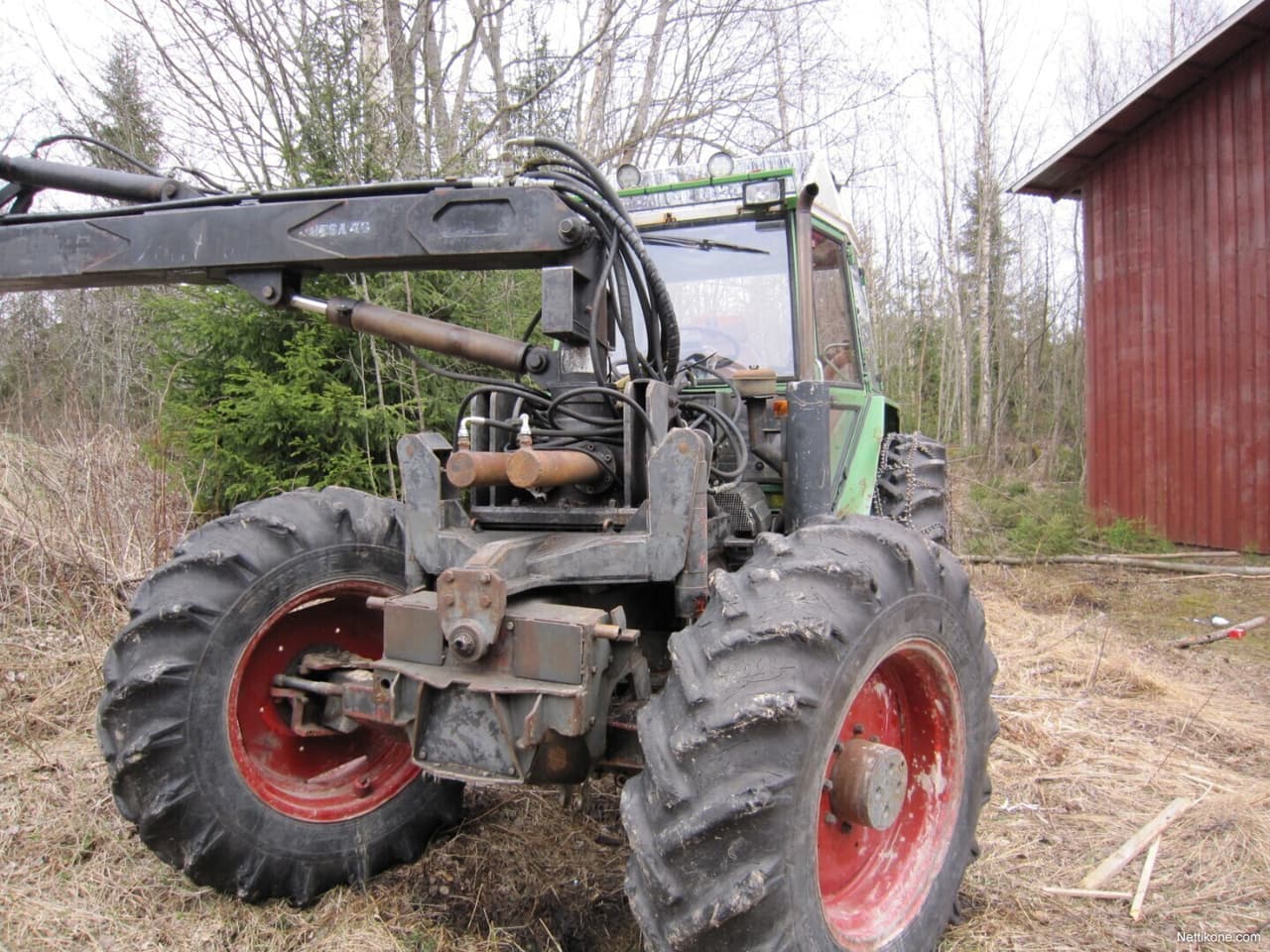

Fendt 380GTA

Last Updated: June 2024

Overview

The Fendt 380GTA is a tool carrier tractor designed for a variety of agricultural tasks. With a chassis featuring 4x4 MFWD 4WD and a weight of 8774 lbs, it is ideally set up for heavy-duty work. The tractor is powered by an air-cooled turbocharged diesel engine from KHD, consisting of 4 cylinders and a displacement of 249.3 cubic inches, and generates a power output of 93.7 horsepower at 2400 RPM. The power is controlled through a transmission system with 21 forward and 6 reverse gears. This model also comes with power steering, enhancing maneuverability and ease of use. The 380GTA has a notable ground clearance of 18.1 inches and a shipping weight identical to its operating weight, allowing it to operate effectively in a variety of field conditions. The tractor's dimensions are 167.3 inches in length, 76.8 inches in width, and 103.2 inches in height, specifying a sizable yet efficient footprint for managing tasks around the farm. Furthermore, optional tires are available, providing flexibility to suit different agricultural requirements. While specifications like hitch type and PTO speeds are not defined in the data provided, optional equipment and adjustments exist which may enhance the versatility of the 380GTA for specialized tasks.
Show more...

Key Specifications

Category: Tool Carrier

Power Output: 93.7

Drive Type: 4WD

Operating Weight: 8774

Fuel Type: Diesel

Fendt 380GTA vs. Similar Tractors

Power Output
Average
Greater than 61% of similar tractors.
Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
KHD
Model
-
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
249.3
Bore (in)
4.02
Stroke (in)
4.92
Rated RPM
2400
Power Output (hp)
93.7

Transmission

Type
-
Forward Gears
21
Reverse Gears
6
Total Gears
27

Dimensions

Length (in)
167.3
Width (in)
76.8
Height (in)
103.2
Operating Weight (lb)
8774

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
