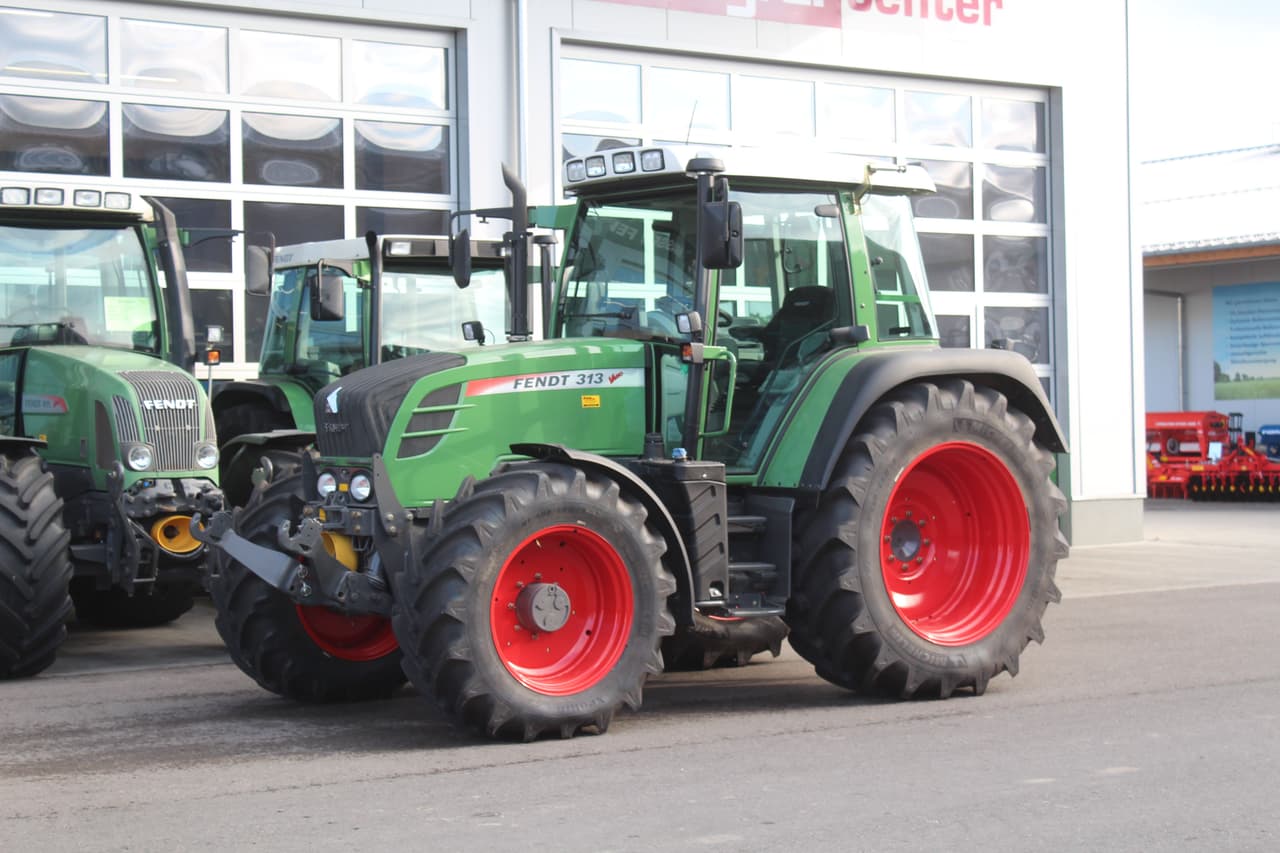

Fendt 313 Vario

Last Updated: June 2024

Overview

The Fendt 313 Vario is a 4WD tractor known for its advanced technology and performance in the field. It features a 4.0 L, turbocharged and intercooled Deutz diesel engine which provides a rated power of 118 hp and can reach up to 135 hp at its maximum capacity. The continuously variable transmission ensures smooth operation and infinite gear ratios both forward and reverse, suitable for a range of farming applications. The tractor operates at a rated RPM of 2100, with a peak torque of 435.2 lb-ft achieved at 1450 RPM, indicating strong pulling capabilities. It has a modern chassis design with a 4x4 MFWD 4WD (four-wheel drive) system, which along with power steering, offers excellent maneuverability. It comes standard with agricultural tires sized 480/65R24 at the front and 540/65R38 at the rear, with optional larger rear tires available. The tractor's operating weight is 9811 lbs, and it has dimensions commonly found in this class with a length of 163.4 inches, a width of 93.9 inches, and a cab height of 110.2 inches. Its hydraulic system is an open center type, and while the hitch category is known to be Category 3, specific details on hitch type and PTO configurations are not available. Operators enjoy a comfortable cab setting, with an electric starter system for the engine. The Fendt 313 Vario combines durability, comfort, and power for professionals in agriculture.
Show more...

Key Specifications

Power Output: 118 (Rated), 135 (Maximum)

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Operating Weight: 9811

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Deutz
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement (ci)
246.4
Bore (in)
3.98
Stroke (in)
4.96
Rated RPM
2100
Power Output (hp)
118 (Rated), 135 (Maximum)

Transmission

Type
Continuously Variable Transmission (CVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
163.4
Width (in)
93.9
Height (in)
110.2
Operating Weight (lb)
9811

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power Steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag): Front: 480/65R24. Rear: 540/65R38 | Optional tires (ag): Front: 480/65R24. Rear: 600/65R34
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
