Fendt 211V

Last Updated: June 2024

Overview

The Fendt 211V is an orchard/vineyard tractor known for its compact design and power. It features a 4x4 MFWD 4WD chassis and operates using a continuously variable transmission (CVT) system, providing infinite forward and reverse gears without the need for manual gear selection. With a turbocharged 3-cylinder AGCO Power diesel engine, the tractor has a displacement of 201.4 cubic inches, capable of delivering a rated power of 99.2 hp and reaching up to 114 hp of maximum power. The 211V boasts a liquid cooling system and an electric starter. Designed for the precision required in vineyards and orchard settings, it comes in multiple configurations, including a ROPS version with a height of 95 inches and a width of 51.4 inches, as well as alternative setups with different dimensions to suit various agricultural needs. Its operating weight ranges from 5688 lbs to a maximum of 6790 lbs depending on the model configuration.

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 99.2 (Standard), 114 (Maximum)

Transmission: Continuously-variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 5688 (211V ROPS), 6129 (211V Cab), 6305 (211F and 211P ROPS), 6790 (211P Cab)

Fuel Type: Diesel

Image Gallery

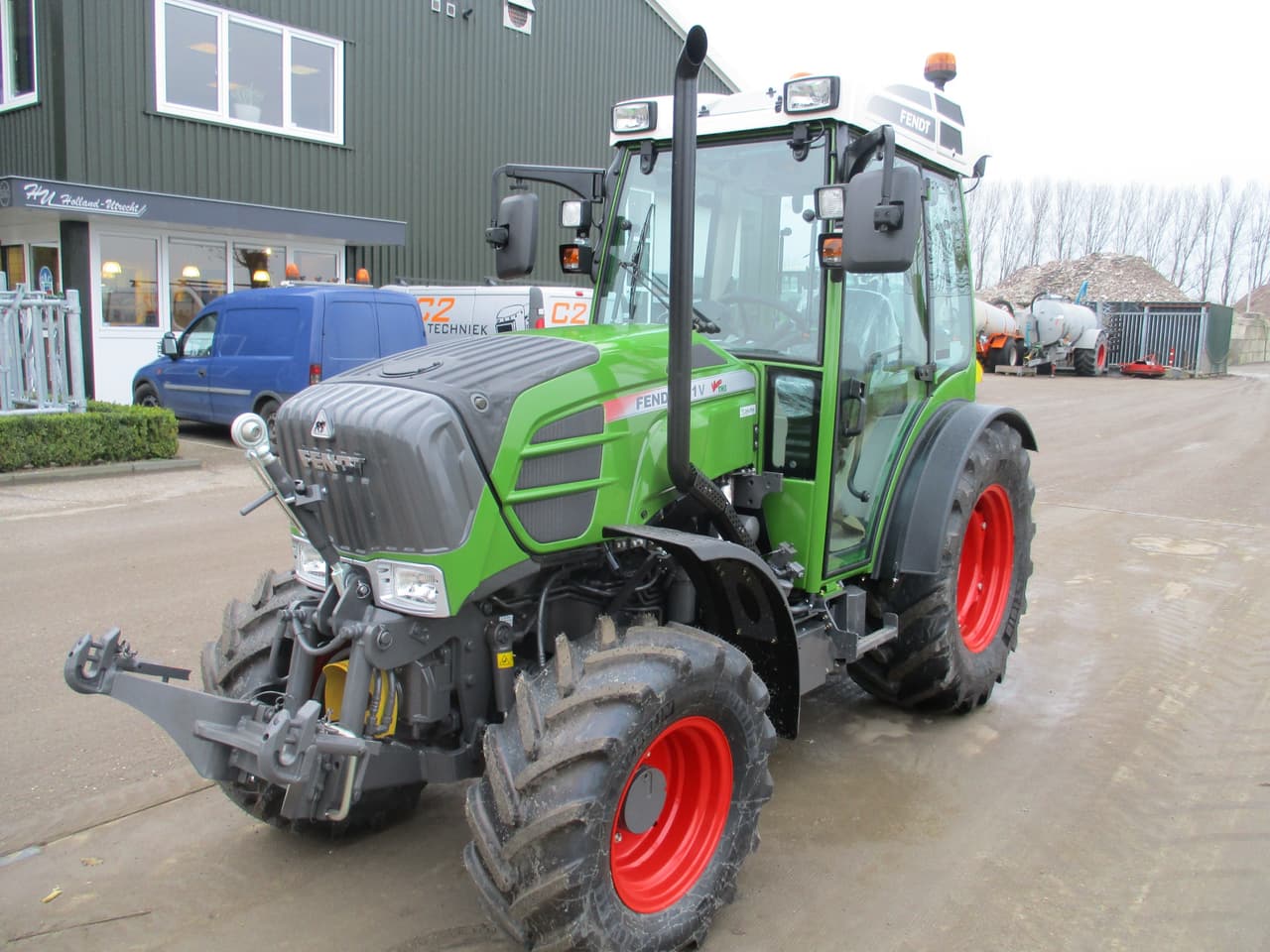

Fendt 211V Tractor

Technical Specifications

Engine

Manufacturer: AGCO Power
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 201.4
Bore (in): 4.25
Stroke (in): 4.72
Rated RPM: 2100
Power Output (hp): 99.2 (Standard), 114 (Maximum)

Transmission

Type: Continuously-variable transmission (CVT)
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 140.9 (211V), 145 (211F), 145.7 (211P)
Width (in): 51.4 (211V), 54 (211F), 67.6 (211P)
Height (in): 95 (211V ROPS), 98.8 (211P ROPS)
Operating Weight (lb): 5688 (211V ROPS), 6129 (211V Cab), 6305 (211F and 211P ROPS), 6790 (211P Cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS (Roll-over Protection Structure), Cab available for 211V and 211P
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
