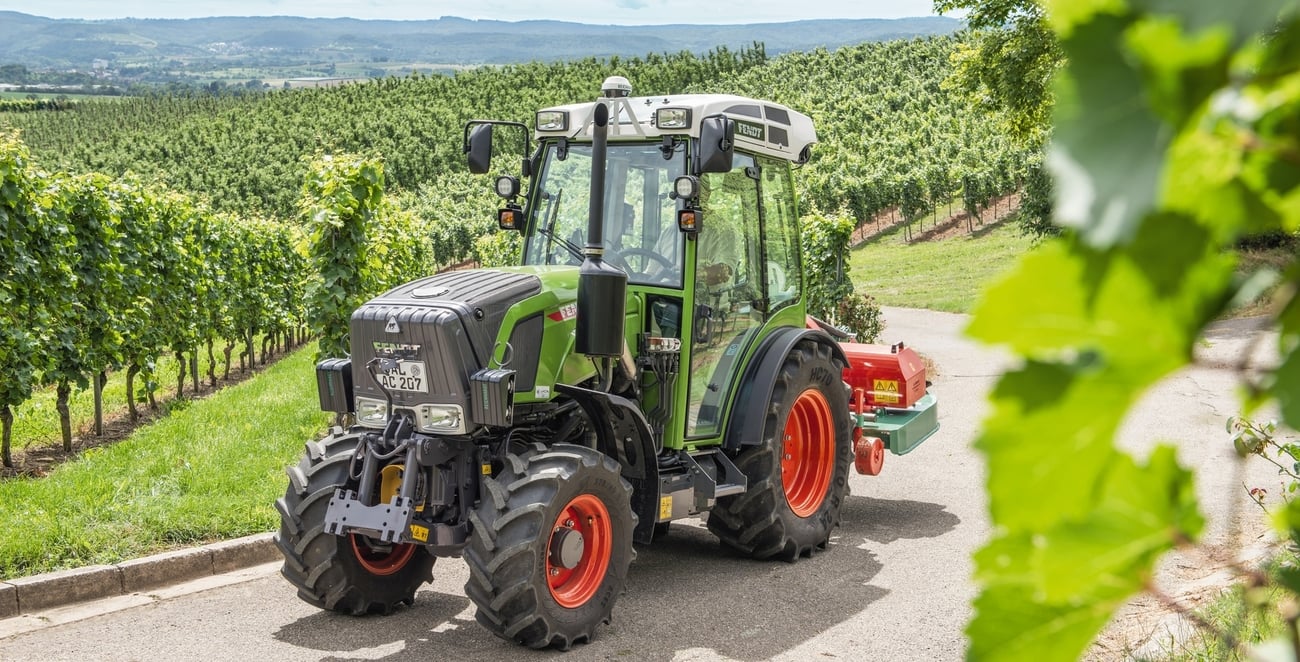

Fendt 211 Vario

Last Updated: June 2024

Overview

The Fendt 211 Vario is a utility tractor that showcases the versatility and advanced technology of Fendt's Vario range. Equipped with a 4WD MFWD chassis and power steering, it provides the necessary traction and ease of handling for various agriculture applications. At the heart of the 211 Vario is a robust AGCO Power turbocharged diesel engine with three cylinders and a liquid cooling system. It has an engine displacement of 201.4 cubic inches, and a bore and stroke of 4.25 and 4.72 inches respectively. With a rated RPM of 2100, it delivers a standard power output of 99.2 horsepower, and the torque reaches up to 337.8 lb-ft at 1600 RPM. A key feature is its continuously-variable transmission, which contributes to the seamless power delivery and efficiency of the tractor. Measuring 160.2 inches in length and 86.1 inches in width, with a cab height of 99.6 inches, the 211 Vario is compact yet powerful. It has a substantial operating weight of 8664 pounds and a maximum hitch lift capacity of 14330 pounds. Tire options include standard agriculture tires with different sizes for front and rear, as well as optional sizes to accommodate various work conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 99.2

Transmission: Continuously-variable transmission

Drive Type: 4WD

Operating Weight: 8664

Fuel Type: Diesel

Fendt 211 Vario vs. Similar Tractors

Power Output
Above Average
Greater than 81% of similar tractors.
Hitch Capacity
Above Average
Greater than 89% of similar tractors.
Operating Weight
Average
Greater than 59% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
201.4
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2100
Power Output (hp)
99.2

Transmission

Type
Continuously-variable transmission
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
160.2
Width (in)
86.1
Height (in)
99.6
Operating Weight (lb)
8664

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag): Front: 440/65R24. Rear: 540/65R34 | Optional (ag): Front: 320/70R24. Rear: 420/85R30
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
Max capacity: 14330 lbs
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
