Fendt 209V

Last Updated: June 2024

Overview

The Fendt 209V is an orchard/vineyard tractor with a 4x4 MFWD 4WD chassis designed to deliver reliable power and maneuverability in tight spaces. It features a turbocharged diesel engine made by AGCO Power equipped with 3 cylinders, a liquid cooling system, and a displacement of 201.4 cubic inches. With a rated power ranging from 79.1 hp to 93.9 hp, based on varying standards, it caters to a range of agricultural demands. The tractor possesses a continuously-variable transmission (CVT), known as Vario, with infinite forward and reverse gears. Designed with a wheelbase of 85 inches, the 209V variant provides an operational weight starting from 5688 pounds, featuring a power steering system for ease of use. Its dimensions and weight vary with different configurations such as ROPS or Cab types. The tractor includes a category 3 hitch, and the power specifications such as PTO speeds, remain unspecified in the provided data.

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: Unknown (Highest rated power being 93.9 hp according to EC 97/68 standard)

Transmission: Continuously-variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 5688 (209V variant with ROPS)

Fuel Type: Diesel

Image Gallery

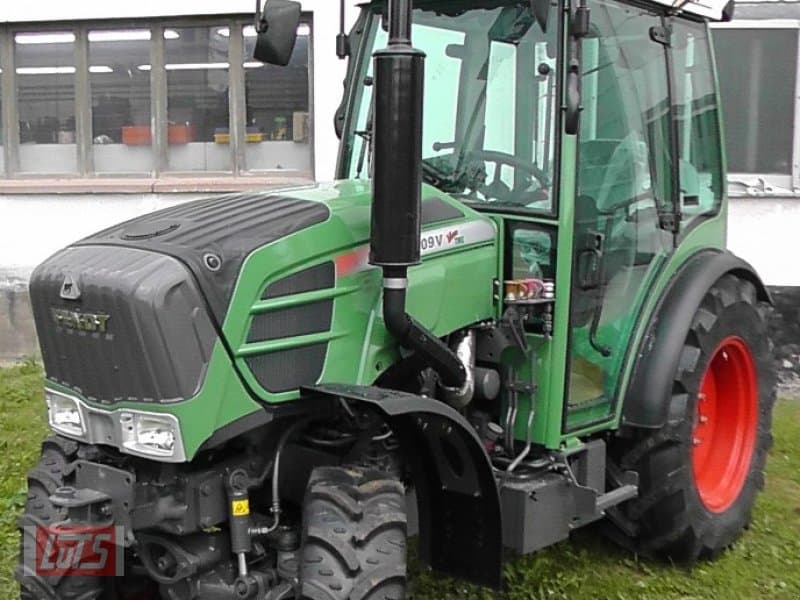

Fendt 209V Tractor

Fendt 209V vs. Similar Tractors

Power Output

Above Average

Greater than 70% of similar tractors.

Operating Weight

Above Average

Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer: AGCO Power
Model: -
Cooling Type: Liquid
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 201.4
Bore (in): 4.25
Stroke (in): 4.72
Rated RPM: 2100
Power Output (hp): Unknown (Highest rated power being 93.9 hp according to EC 97/68 standard)

Transmission

Type: Continuously-variable transmission (CVT)
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 140.9 (209V variant)
Width (in): 45.3 (209V variant)
Height (in): 95 (209V variant, ROPS)
Operating Weight (lb): 5688 (209V variant with ROPS)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Unknown (both ROPS and Cab versions exist)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
