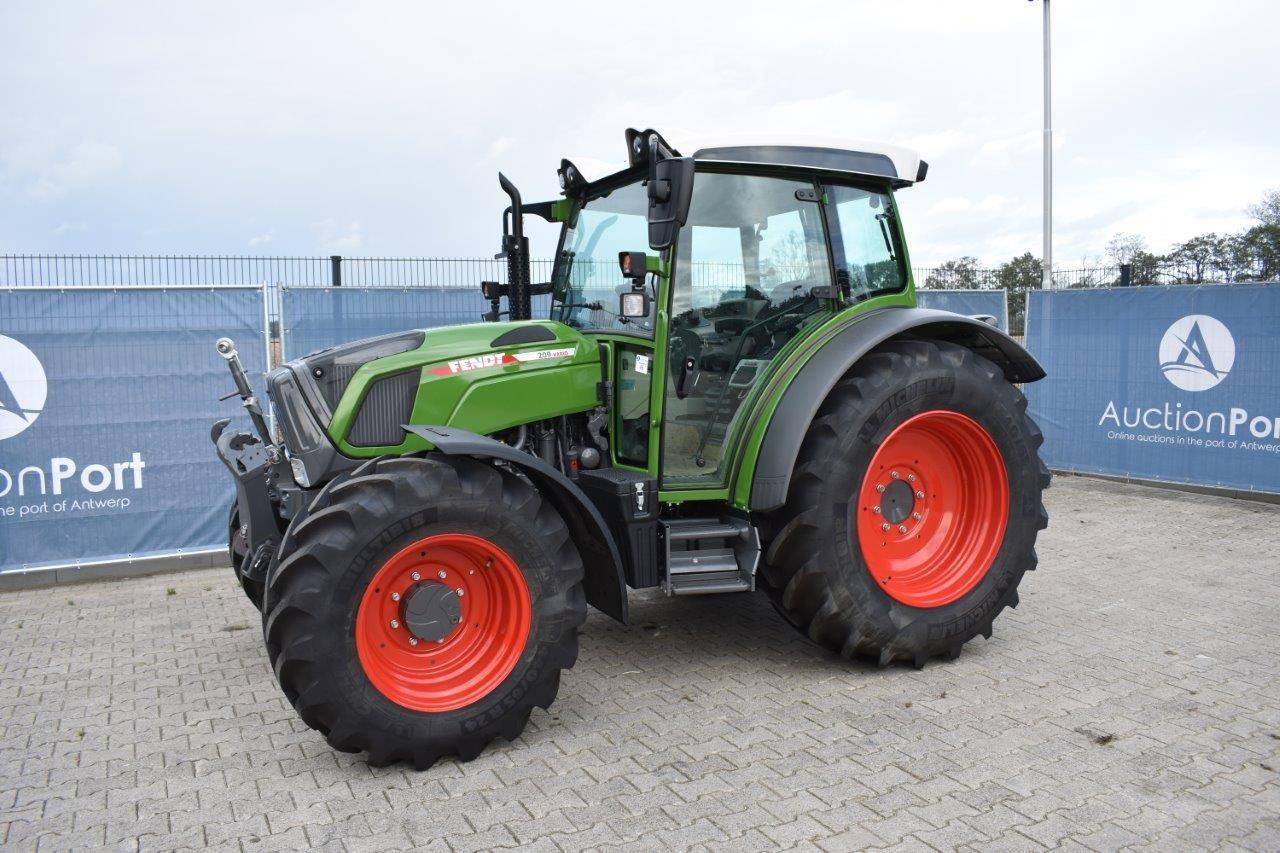

Fendt 209 Vario

Last Updated: June 2024

Overview

The Fendt 209 Vario is a utility tractor that is optimized for a variety of farming tasks. It features a 4x4 MFWD 4WD chassis, providing excellent traction in diverse conditions. The tractor is powered by a 3-cylinder, turbocharged diesel engine supplied by AGCO Power, with a displacement of 201.4 cubic inches. It offers a rated power output of 79.1 horsepower with variability up to 93.9 horsepower depending on the rating system (ECE R24 or EC 97/68). Moreover, it delivers a torque of 275.1 lb-ft at 1600 RPM. For transmission, the 209 Vario utilizes a continuously-variable transmission (CVT) that allows for infinite forward and reverse gears, making it very adaptable to different tasks and terrain. With a weight of 8,532 pounds and dimensions characterized by a 160.2-inch length, 85.4-inch width, and a cab height of 99.6 inches, this tractor is designed for substantial tasks while still being maneuverable. The ag-standard tires are 380/70R24 at the front and 480/70R34 at the rear. The comfort of the operator is ensured with a cab-styled station, and the tractor starts with an electric starter system. Although not all specifications are fully detailed, the Fendt 209 Vario remains an impressive machine for various agricultural needs.
Show more...

Key Specifications

Category: Utility

Power Output: 79.1

Transmission: Continuously-variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 8532

Fuel Type: Diesel

Fendt 209 Vario vs. Similar Tractors

Power Output
Average
Greater than 70% of similar tractors.
Hitch Capacity
Above Average
Greater than 89% of similar tractors.
Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
201.4
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2100
Power Output (hp)
79.1

Transmission

Type
Continuously-variable transmission (CVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
160.2
Width (in)
85.4
Height (in)
99.6
Operating Weight (lb)
8532

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard ag: Front: 380/70R24. Rear: 480/70R34
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
Max capacity: 14330 lbs
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
