Fendt 1167 Vario MT

Last Updated: July 2024

Overview

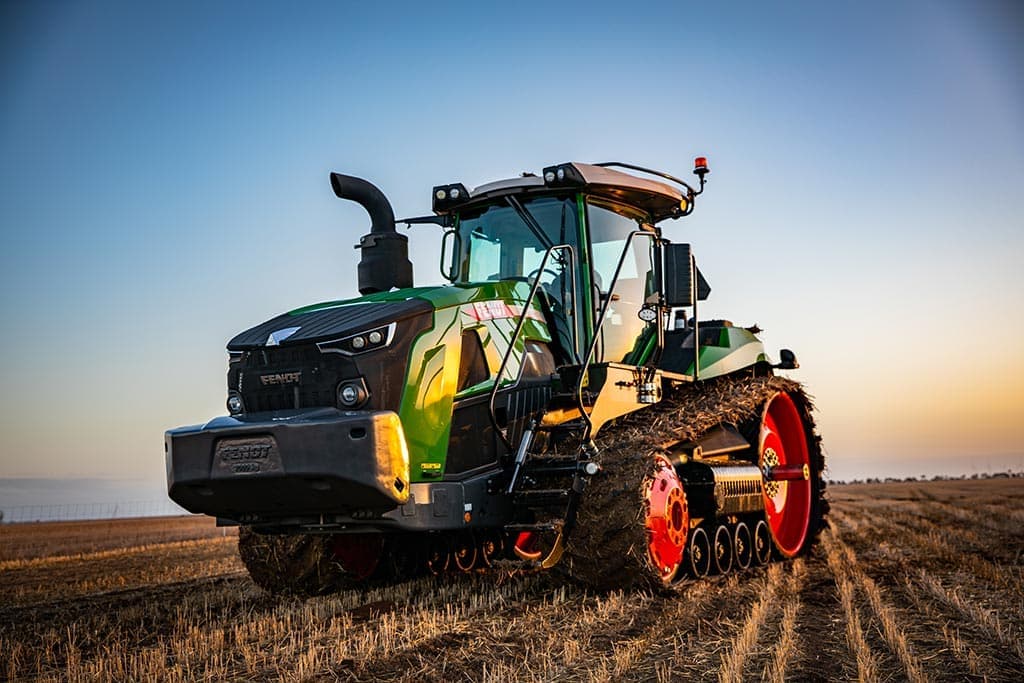

The Fendt 1167 Vario MT is an agricultural crawler tractor with a MAN D4276 turbocharged diesel engine. Based on independent test results, the engine displacement is 986.0 ci, bore is 5.591 in, and stroke is 6.693 in. The maximum power output is 604.95 hp at rated 1730 rpm, with a maximum torque of 2099 lb-ft at 1050 rpm and a torque rise of 15.5%. The operating weight is 43,840 lbs. The transmission is a continuously-variable type with infinite forward and reverse gears, and nominal travel speeds of 0-25.0 mph forward and 0-8.7 mph reverse. The cooling system features 2 thermostats and a variable speed fan. Detailed hydraulic system specifications and fuel consumption data are available from the test results.
Show more...

Key Specifications

Category: Agricultural, Crawler

Power Output: 604.95

Transmission: Continuously-variable transmission

Drive Type: Track

Operating Weight: 43840

Fuel Type: Diesel

Image Gallery

Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor Fendt 1167 Vario MT Tractor

Fendt 1167 Vario MT vs. Similar Tractors

Power Output
Excellent
Greater than 96% of similar tractors.
Operating Weight
Average
Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer
MAN
Model
D4276
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
986.0
Bore (in)
5.591
Stroke (in)
6.693
Rated RPM
1730
Power Output (hp)
604.95

Transmission

Type
Continuously-variable transmission
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
266
Width (in)
116.1
Height (in)
148
Operating Weight (lb)
43840

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Crawler
Drive Type
Track
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (24 volt)
Brake Type
-
Hydraulic System Type
Closed center pressure-flow compensated

Test Results

Nebraska Tractor Test Laboratory - Test Date: October 26 to November 9, 2021

Maximum Power and Fuel Consumption

  • Maximum Power at Rated Engine Speed (1730 rpm): 598.71 HP (446.46 kW)
  • Fuel Consumption at Maximum Power: 29.90 Gal/hr (113.17 l/h) with a fuel efficiency of 0.349 lb/hp.hr (0.212 kg/kW.h)
  • DEF Consumption at Maximum Power: 2.33 Gal/hr (8.82 l/h)

Drawbar Performance

  • Power at Rated Engine Speed (5.43 mph, 9.0 km/h): 490.73 HP (365.94 kW) with a drawbar pull of 33935 lbs (150.95 kN) and slip of 4.3%
  • Fuel Consumption at Rated Speed: 0.412 lb/hp.hr (0.251 kg/kW.h) with a fuel efficiency of 16.93 hp.hr/gal (3.34 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 2099 lb.-ft. (2846 Nm) at 1050 rpm
  • Torque Rise: 15.5%
  • Power Increase at 1600 rpm: 1.0%

Hydraulic Performance

  • Maximum Force Exerted: 23359 lbs (103.9 kN) at 24" behind QC ends
  • Combined Pump Delivery Rate at Minimum Pressure: 123.6 GPM (467.9 l/min)
  • Hydraulic Power: 97.0 HP (72.3 kW) at a delivery pressure of 2757 psi (190 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1300 rpm): 20.34 Hp.hr/gal (4.01 kW.h/l)
  • Fuel Consumption at Standard PTO Speed: 29.61 Gal/hr (112.08 l/h) at 1631 rpm



NTTL.(2022). Nebraska OECD Tractor test 2247 for Fendt 1167 Vario MT Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
