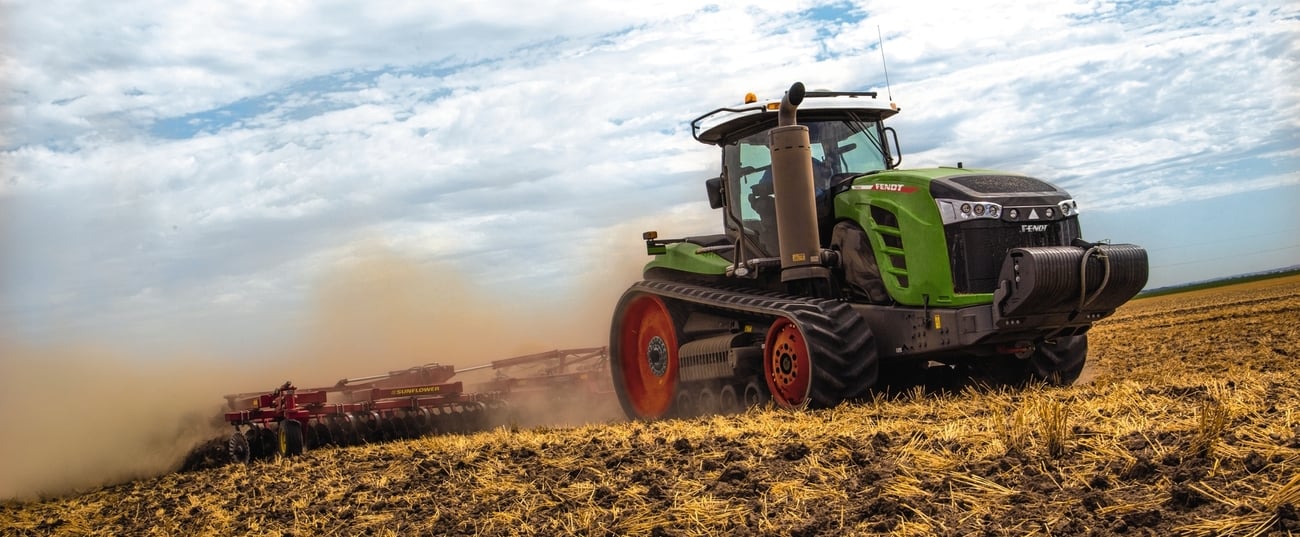

Fendt 1159 MT

Last Updated: June 2024

Overview

The Fendt 1159 MT is a powerful machine boasting a 12-cylinder AGCO Power engine with a liquid-cooled, turbocharged design. With a substantial displacement of 1025 cubic inches, it delivers a rated power of 540.4 hp, increasing to a maximum of 583.3 hp under certain conditions, according to the ECE R120 standard. Operating rpm ranges from 1500 to 2100, with the peak torque generated at the lower end of this spectrum. The transmission is a Caterpillar TA22 full power shift, offering 16 forward and 4 reverse gears. The tractor's dimensions reveal a significant presence, with a length of 266 inches, width of 118.1 inches, and a cab height of 136.2 inches. The 1159 MT weights in at 42692 pounds and can accommodate up to a maximum weight of 59525 pounds, ensuring it is capable of handling heavy-duty tasks. Details such as chassis type, drive type, and steering are not specified in the provided data.
Show more...

Key Specifications

Power Output: 540.4

Transmission: Full power shift

Operating Weight: 42692

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
V12
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
12
Displacement (ci)
1025
Bore (in)
4.37
Stroke (in)
5.709
Rated RPM
2100
Power Output (hp)
540.4

Transmission

Type
Full power shift
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
266
Width (in)
118.1
Height (in)
136.2
Operating Weight (lb)
42692

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center pressure flow compensated
