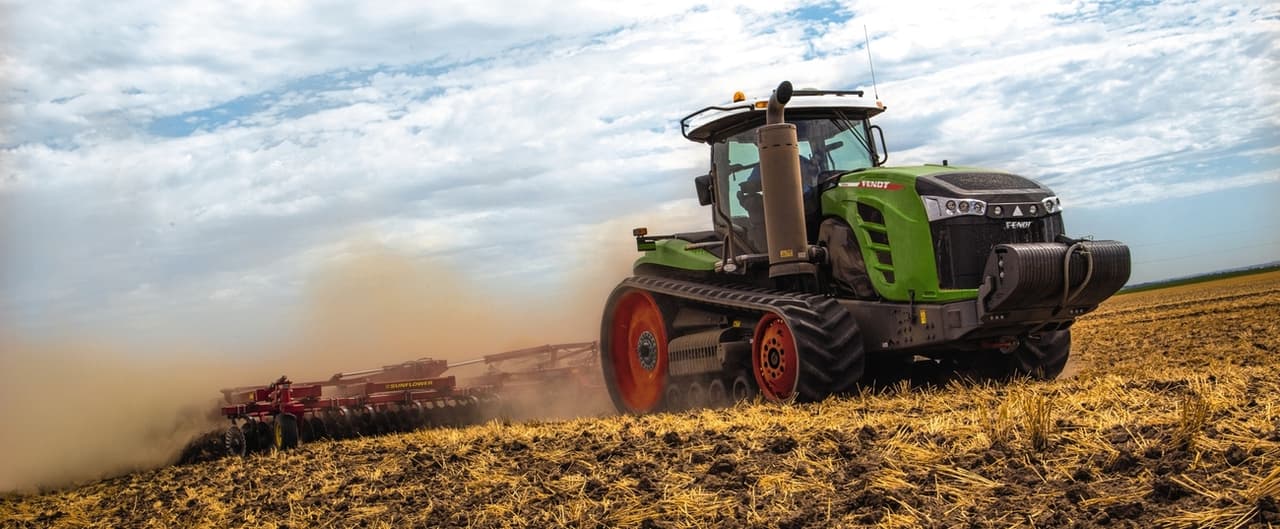

Fendt 1149 MT

Last Updated: June 2024

Overview

The Fendt 1149 MT is a robust track tractor known for its powerful AGCO Power 12-cylinder, liquid-cooled, turbocharged diesel engine. The V-shaped engine layout supports a displacement of 1025 ci and generates a rated power of 450.6 hp and a maximum power of 485.5 hp at an operating RPM range of 1500-2100. This tractor features an electric starter and is rated at a torque of 1600.5 lb-ft at 1500 RPM, abiding by Tier IV emission standards. It is equipped with a full power shift Caterpillar TA22 transmission that includes 16 forward gears and 4 reverse gears. The transmission allows for smooth shifting and efficient field operations. With a weight of 42692 lbs, this Fendt tractor stands 136.2 inches high and spans 266 inches in length. Its track chassis gives it a ground clearance of 18.1 inches, and its gauge is set at 90 inches. The 1149 MT has been designed to deliver exceptional power and durability, making it well-suited for demanding agricultural tasks.
Show more...

Key Specifications

Category: Crawler

Power Output: 450.6

Transmission: Full Power Shift

Drive Type: Track

Operating Weight: 42692

Fuel Type: Diesel

Fendt 1149 MT vs. Similar Tractors

Power Output
Above Average
Greater than 71% of similar tractors.
Operating Weight
Above Average
Greater than 72% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
V
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
12
Displacement (ci)
1025
Bore (in)
4.37
Stroke (in)
5.709
Rated RPM
2100
Power Output (hp)
450.6

Transmission

Type
Full Power Shift
Forward Gears
16
Reverse Gears
4
Total Gears
20

Dimensions

Length (in)
266
Width (in)
118.1
Height (in)
136.2
Operating Weight (lb)
42692

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
Track
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category IV/III
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed Center Pressure Flow Compensated
