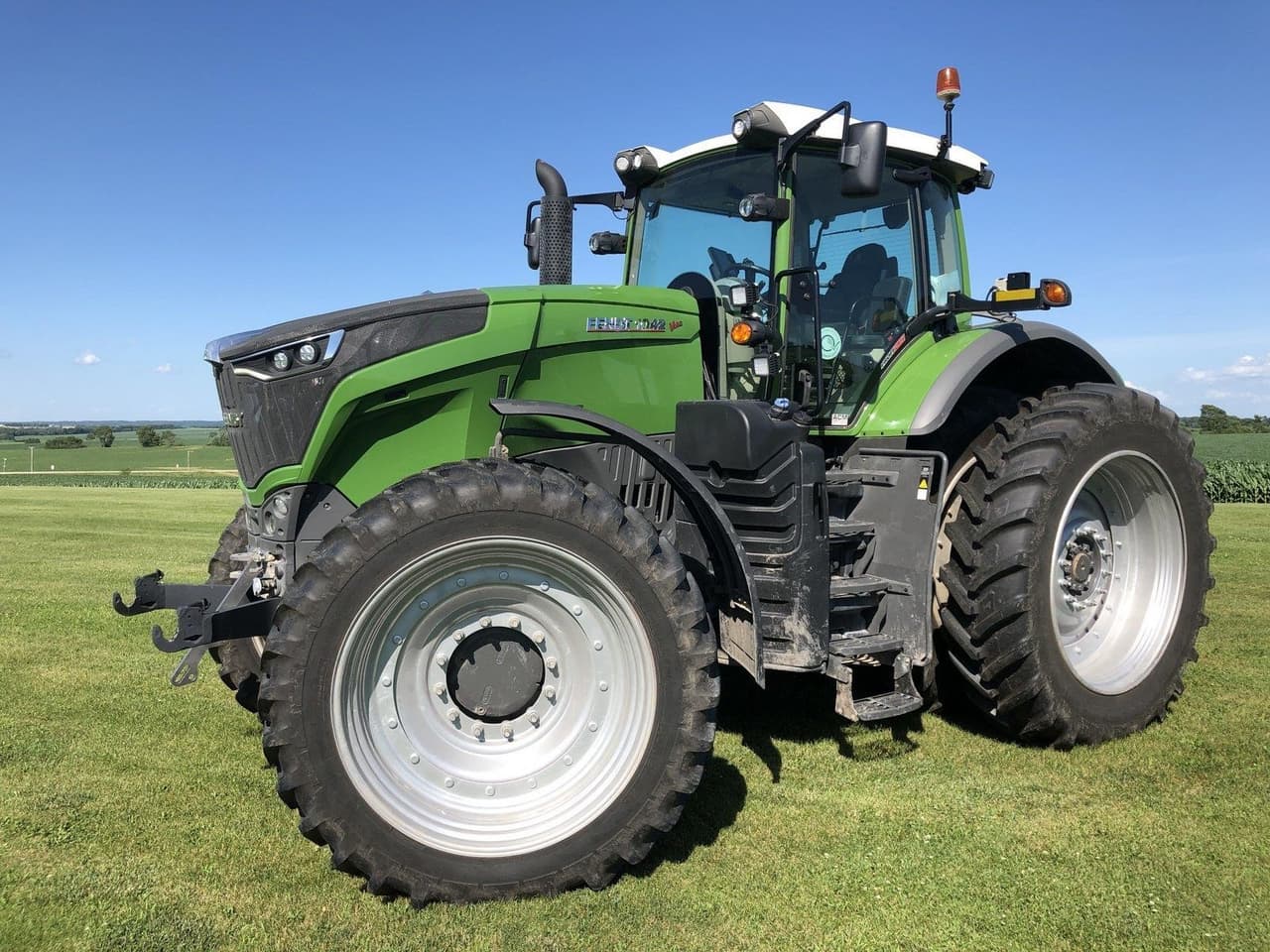

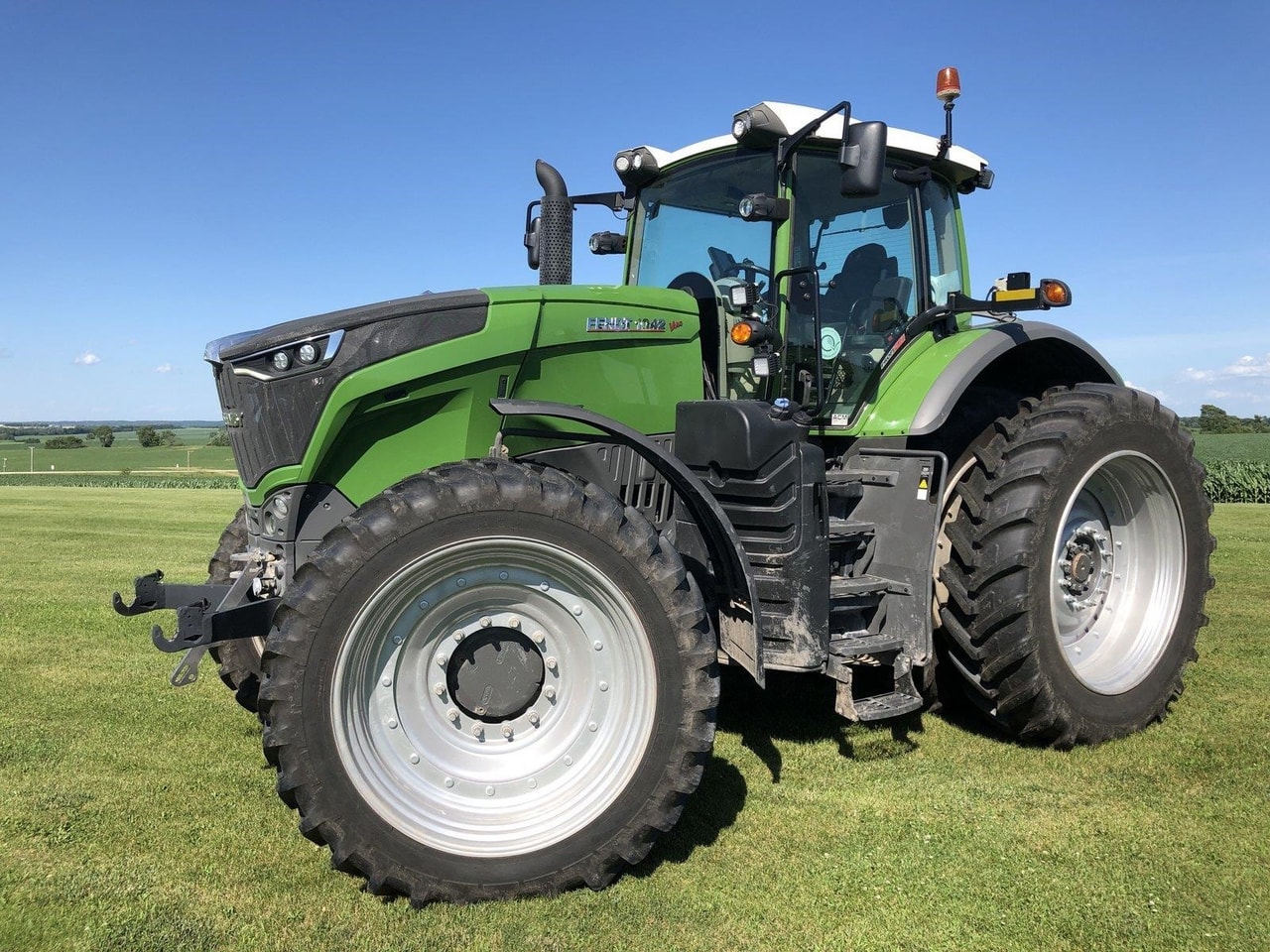

Fendt 1042 Vario

Last Updated: June 2024

Overview

The Fendt 1042 Vario is a high-power, row-crop tractor that provides robust performance in a variety of agricultural tasks. Designed with a 4x4 MFWD 4WD chassis for enhanced traction and a power steering system for better maneuverability, this tractor is built to handle demanding operations. It features a continuously variable transmission (CVT) which allows for infinite forward and reverse gears, enabling precise speed control for any task. The engine, manufactured by MAN, is a six-cylinder, liquid-cooled, 757.9 cubic inches, turbocharged intercooled diesel engine, yielding a rated power of 420 horsepower at 1700 RPM. The tractor measures 242.4 inches in length, 108.3 inches in width, and has a cab height of 135.6 inches, with an operating weight of 30,865 pounds. The Fendt 1042 Vario is equipped with a load sensing hydraulic system and a standard three-point hitch (Category 3) located at the rear for attachment versatility. It is designed to meet Tier IV emission standards using selective catalytic reduction (SCR) with a diesel oxidation catalyst, reflecting modern environmental considerations in its design.
Show more...

Key Specifications

Category: Row Crop

Power Output: 420

Transmission: CVT

Drive Type: 4WD

Operating Weight: 30865

Fuel Type: Diesel

Fendt 1042 Vario vs. Similar Tractors

Power Output
Excellent
Greater than 93% of similar tractors.
Operating Weight
Above Average
Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer
MAN
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
757.9
Bore (in)
4.96
Stroke (in)
6.54
Rated RPM
1700
Power Output (hp)
420

Transmission

Type
CVT
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
Infinite

Dimensions

Length (in)
242.4
Width (in)
108.3
Height (in)
135.6
Operating Weight (lb)
30865

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category 3
Hitch Category
Unknown - Presumed to match standard category for type "IV"
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load sensing
