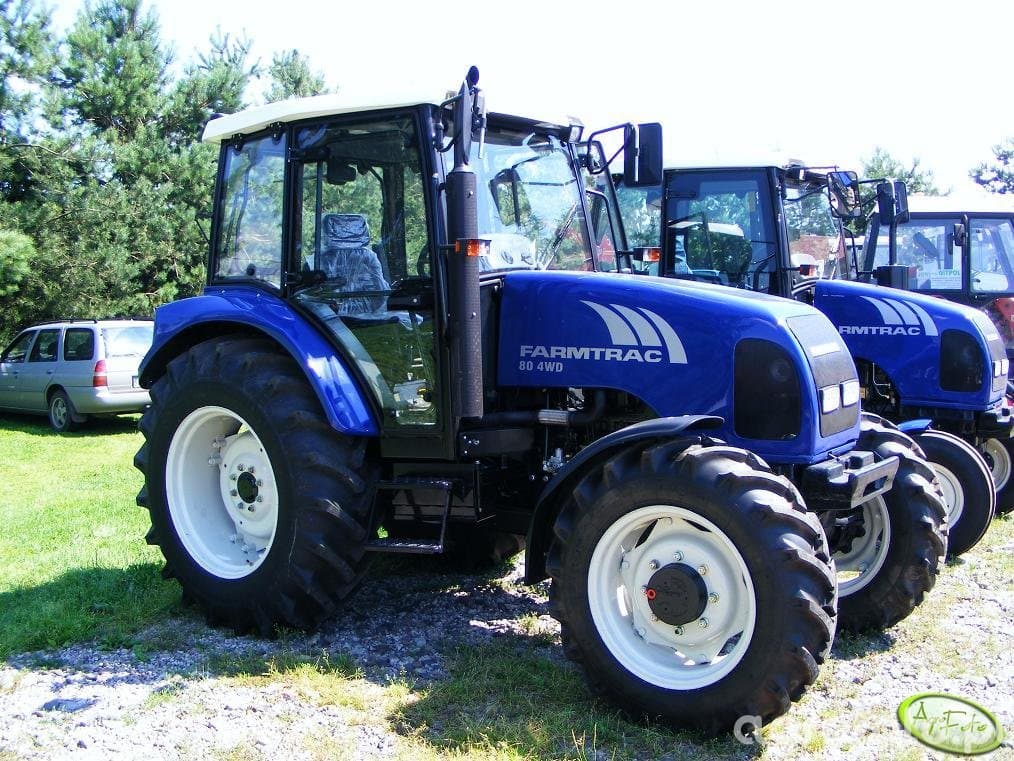

Farmtrac 80

Last Updated: June 2024

Overview

The Farmtrac 80 is a utility tractor that is built with functionality and power in mind. It is powered by a robust Perkins 1004.42 liquid-cooled diesel engine with a displacement of 258 cubic inches, which outputs 72.4 horsepower. Operating at a rated 2200 RPM and making use of direct injection for its fuel system, the engine provides reliable performance for a range of tasks. This model utilizes a 12-speed manual transmission and is equipped with power steering for enhanced maneuverability. The tractor, having a 2WD chassis, boasts a dry disc clutch and standardized agricultural tires; front tire size is 7.50-16, and the rear tire size is 16.9-30 for 2WD configurations. As for its dimensions, the tractor stretches to 149 inches in length and stands at 96 inches in height to the exhaust. With an operating weight of 5675 lbs, the Farmtrac 80 is designed to offer a blend of power and agility, suitable for a variety of agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 72.4

Transmission: Manual

Drive Type: 2WD

Operating Weight: 5675

Fuel Type: Diesel

Farmtrac 80 vs. Similar Tractors

Power Output
Average
Greater than 66% of similar tractors.
Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004.42
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
258
Bore (in)
4.1
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
72.4

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
149
Width (in)
70 *
Height (in)
96
Operating Weight (lb)
5675

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
