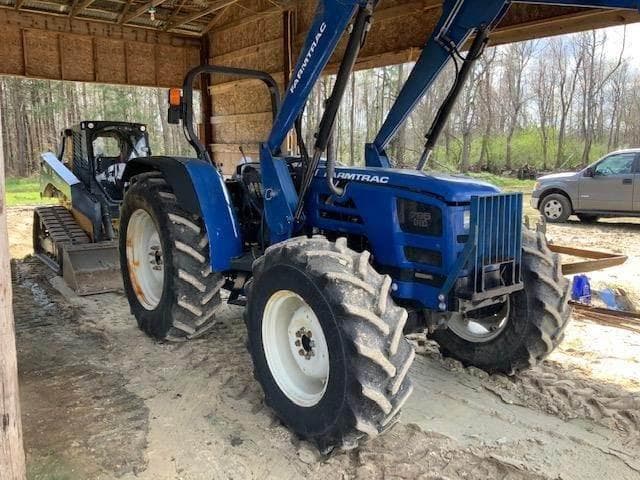

Farmtrac 795DTC

Last Updated: June 2024

Overview

The Farmtrac 795DTC is a farm/agricultural tractor that offers both power and durability for various farming tasks. Equipped with a 4x4 MFWD 4WD chassis, it provides enhanced traction in difficult conditions. This tractor comes with a hydrostatic power steering system, making maneuvering in tight spaces easier for the operator. It is powered by a turbocharged diesel Deutz-Fahr engine with 4 cylinders and a displacement of 244 ci, producing 95 hp. The engine's liquid cooling system helps maintain optimal operation temperatures. The transmission system boasts a shuttle shift with 15 gears in both forward and reverse directions. This tractor has considerable dimensions, with a length of 158 inches, width of 82 inches, and height of 93 inches. The operating weight is 7,490 lbs, suggesting it has a strong build capable of handling heavy-duty tasks efficiently. The tire setup includes 13.6x24 front tires and 18.4x30 rear tires, suited for agricultural purposes. The tractor's specific hitch type is classified as "II," although the lifting capacity and additional features are not specified. Missing data or unconfirmed details have been recorded as "Unknown" within this narrative.
Show more...

Key Specifications

Category: Agricultural

Power Output: 95

Transmission: shuttle

Drive Type: 4WD

Operating Weight: 7490

Fuel Type: Turbocharged diesel

Farmtrac 795DTC vs. Similar Tractors

Power Output
Above Average
Greater than 73% of similar tractors.
Operating Weight
Average
Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz-Fahr
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbocharged diesel
Induction Type
turbocharged
Cylinders
4
Displacement (ci)
244
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
95

Transmission

Type
shuttle
Forward Gears
15
Reverse Gears
15
Total Gears
-

Dimensions

Length (in)
158
Width (in)
82
Height (in)
93
Operating Weight (lb)
7490

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
13.6
Rear Tire Diameter (in)
30
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
