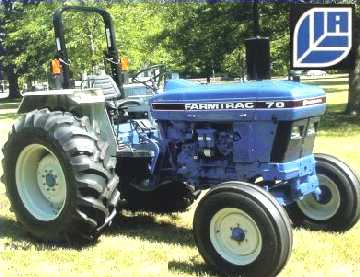

Farmtrac 70

Last Updated: June 2024

Overview

The Farmtrac 70 is a utility tractor that caters to a variety of agricultural needs. It comes equipped with a 4x2 2WD chassis and a manual transmission offering 12 forward and 12 reverse gears, allowing the operator to select the optimal speed for different tasks. The tractor is powered by a 60 hp, 3-cylinder, liquid-cooled diesel engine that has a displacement of 201 cubic inches and operates at 2200 rated RPM. It has a wheelbase of 84 inches and features agricultural tires with sizes 7.50-16 for the front and 16.9-28 for the rear. The Farmtrac 70 is designed to offer reliable performance and adaptability for various agricultural operations. The engine's oil capacity is 6 quarts, with a coolant capacity of 14.4 quarts, ensuring it remains well-lubricated and at an optimal temperature during operations.
Show more...

Key Specifications

Category: Utility

Power Output: 60

Transmission: Manual

Drive Type: 2WD

Fuel Type: Diesel

Farmtrac 70 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
201
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
60

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
14.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
