Farmtrac 535

Last Updated: June 2024

Overview

The Farmtrac 535 is a utility tractor that is designed for a range of general farming tasks. It is a 2WD tractor with a constant mesh transmission system and an emphasis on durability and functionality. The tractor comes with a 35 hp, 3-cylinder, liquid-cooled diesel engine. Its chassis configuration specifies a simple 4x2 2WD setup. The model 535 supports various tires for different applications, ranging from agricultural to industrial purposes. This versatility is seen in the range of tire options, such as 6.00-16 and 12.4-28 for agricultural use, 24x13-12 and 44x18-20 for lawn and turf, and 11L-15 and 19.5L-24 for industrial applications. The tractor measures 131 inches in length, 76 inches in width, and 84 inches tall at the exhaust, with an operating weight of 4220 lbs. It features an 8-speed (forward) transmission with 2 reverse gears, accommodating different working needs.

Key Specifications

Category: Utility

Power Output: 35

Transmission: Constant mesh

Drive Type: 2WD

Operating Weight: 4220

Fuel Type: Diesel

Image Gallery

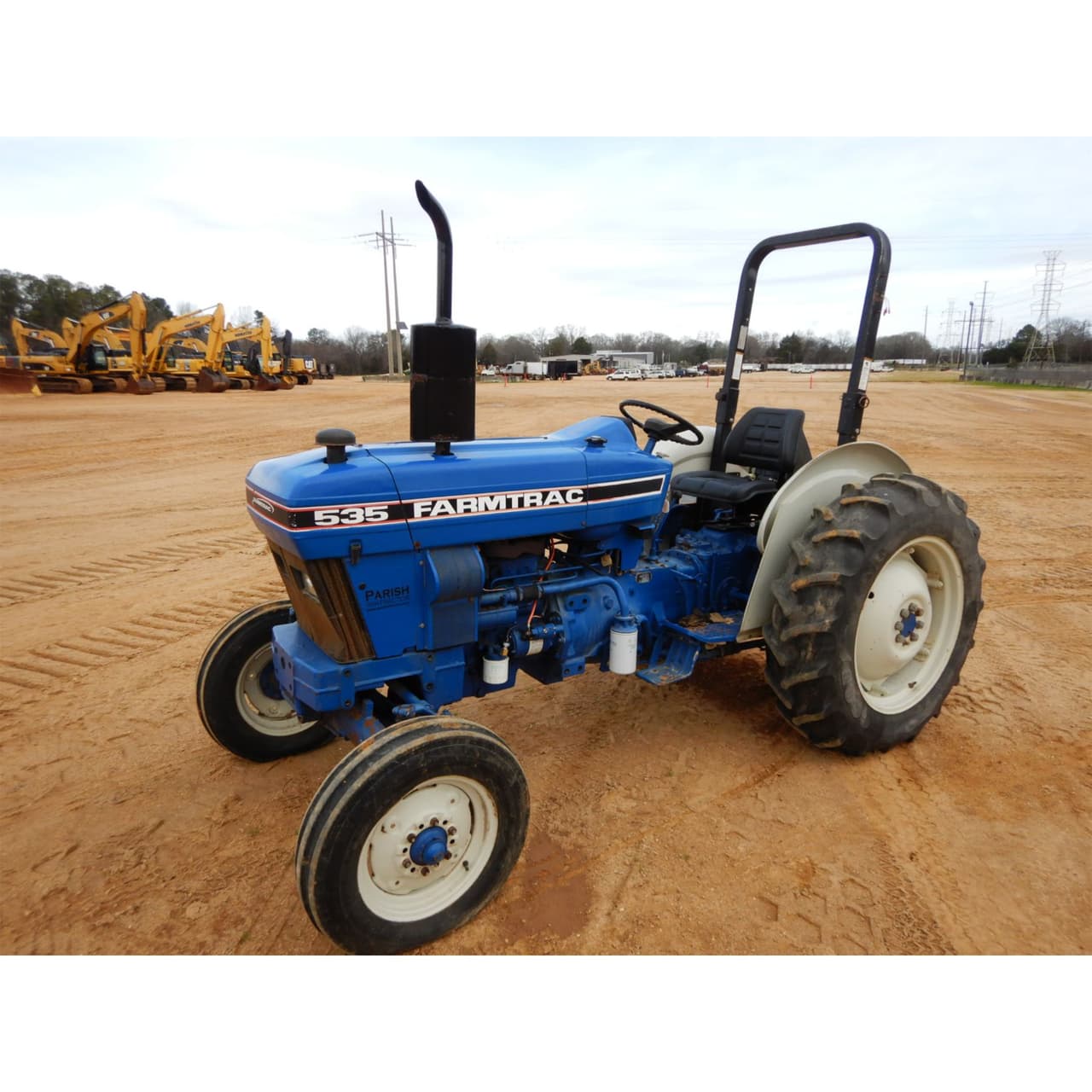

Farmtrac 535 Tractor

Farmtrac 535 vs. Similar Tractors

Power Output

Average

Greater than 32% of similar tractors.

Operating Weight

Average

Greater than 38% of similar tractors.

Technical Specifications

Engine

Manufacturer: -
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 131
Bore (in): -
Stroke (in): -
Rated RPM: -
Power Output (hp): 35

Transmission

Type: Constant mesh
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 131
Width (in): 76
Height (in): 84 (to exhaust)
Operating Weight (lb): 4220

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 16 (best guess from 6.00-16 size)
Front Tire Width (in): 6 (from 6.00-16 size)
Rear Tire Diameter (in): 28 (from 12.4-28 and 13.6-28 sizes)
Rear Tire Width (in): Varies (12.4, 13.6, 19.5, 44 based on available sizes)
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/Turf, Industrial (based on sizes given)
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 volts (assumed electric starter from voltage)
Brake Type: -
Hydraulic System Type: -
