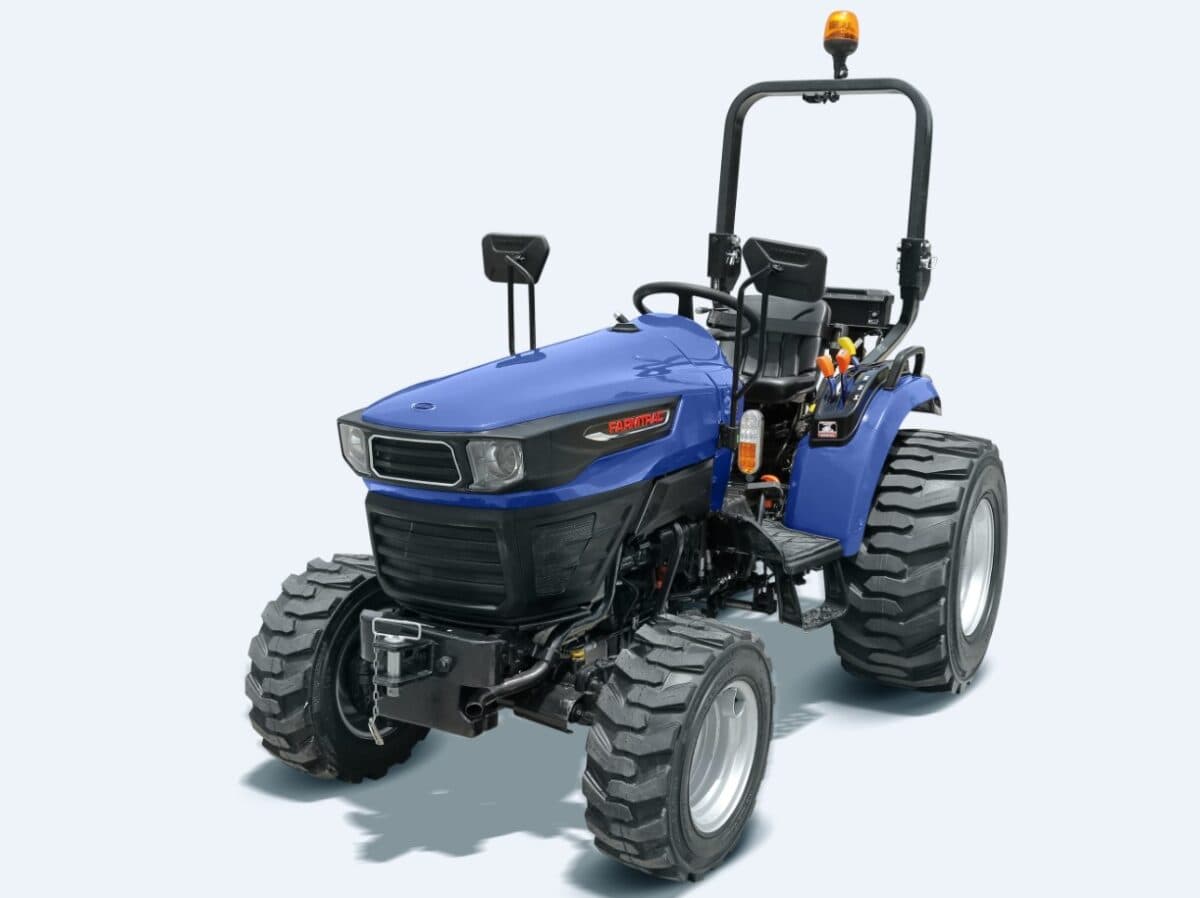

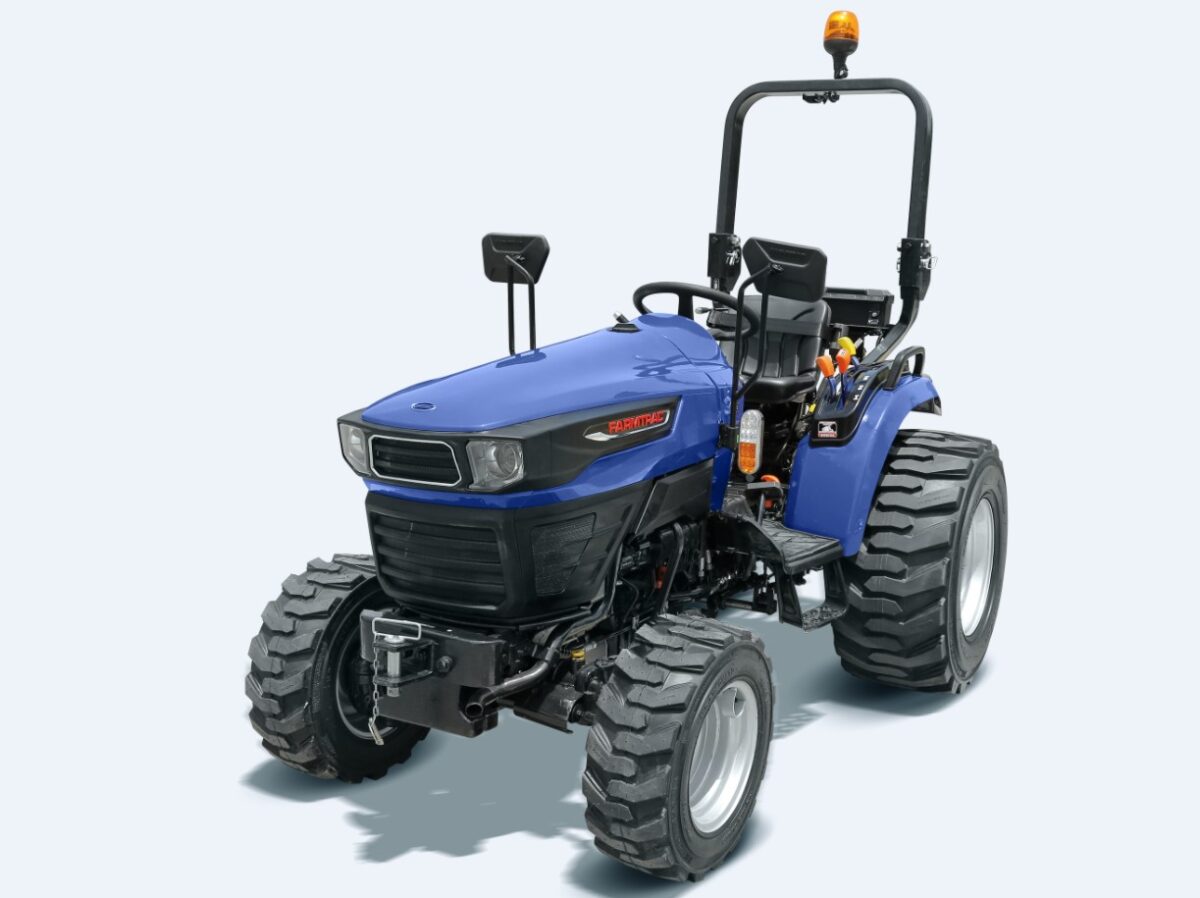

Farmtrac 330HST

Last Updated: June 2024

Overview

The Farmtrac 330HST is a 4-wheel drive compact utility tractor, powered by a 33 horsepower diesel engine provided by LS, suggestive of a strong partnership between Farmtrac and engine manufacturer LS. It incorporates a hydrostatic transmission with infinite forward and reverse gears, allowing for smooth transitions and precise control during operations. The tractor comes with several tire configuration options catering to agricultural, lawn, turf, and industrial needs—indicating its versatility for a wide range of tasks. The standard ag tire measurements are 8.3-16 for the front and 12.4-24 for the rear. This tractor model has a significant weight of 3090 lbs, which, along with its dimensions—123 inches in length, 66 inches in width, and 88 inches in height—conveys a robust and stable machine. While specific details such as the tractor's steering type, rated RPM, and hydraulic system remain unspecified, the 330HST remains a practical option for various applications.
Show more...

Key Specifications

Power Output: 33

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 3090

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
LS
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
100.5
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
33

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
123
Width (in)
66
Height (in)
88
Operating Weight (lb)
3090

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag; Lawn/Turf; Industrial
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 Volts
Brake Type
-
Hydraulic System Type
-
