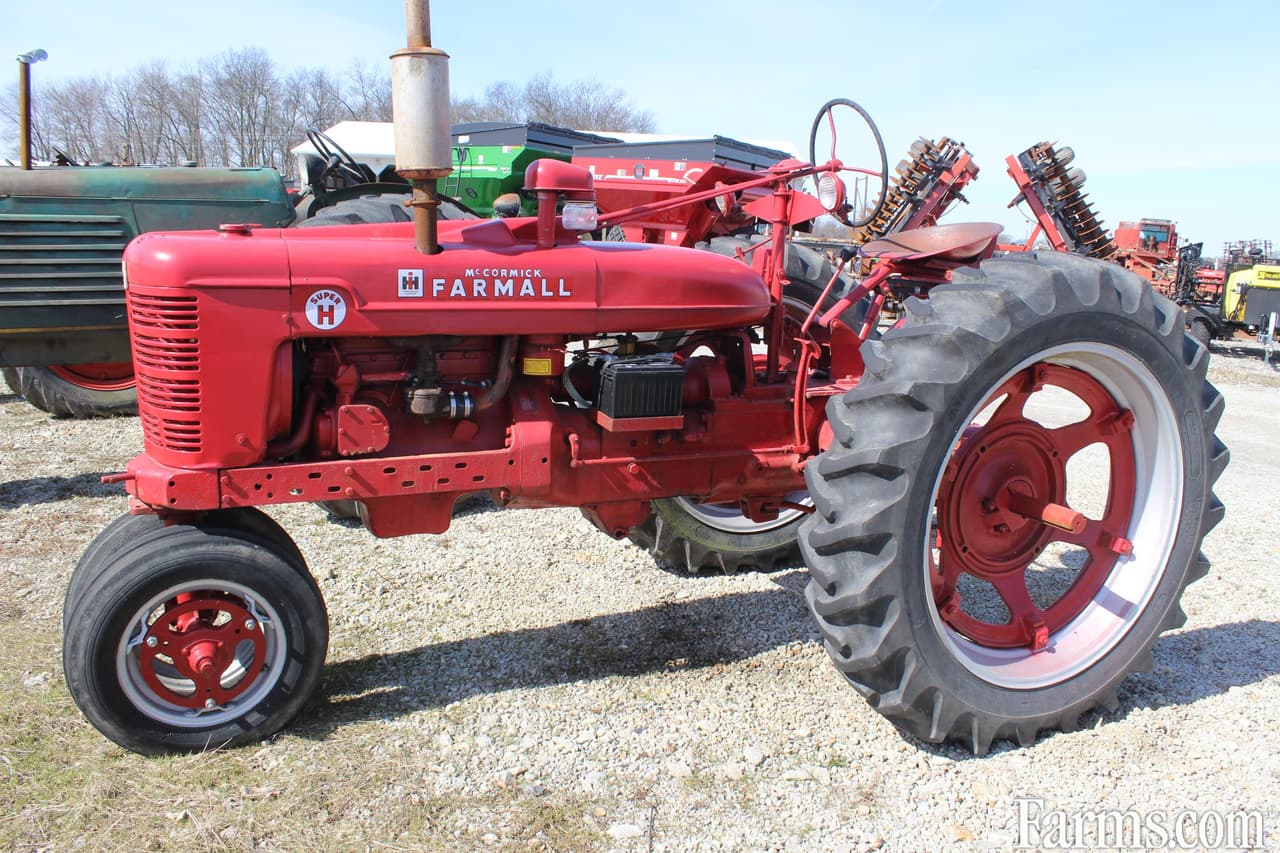

Farmall Super H

Last Updated: September 2024

Overview

The Farmall Super H is a row crop tractor made from 1953 to 1954. It's a 2-wheel drive tractor with a manual steering system. The Super H has a 5-speed transmission with one reverse gear, making it good for different farm tasks.

This tractor has a 4-cylinder gasoline engine made by International Harvester. The engine is liquid-cooled and has 164 cubic inches of displacement, which is below average for tractors. It produces 40.81 horsepower at 1650 rpm, which is also on the lower end. The Super H weighs 3,875 pounds and has a Category 3 rear hitch for attaching farm tools. It also has a 540 rpm PTO for powering equipment.

The Farmall Super H is 133 inches long, 75.5 inches wide, and 85 inches tall. It has an open operator station and runs on agricultural tires. The tractor starts with an electric starter and has mechanical disc brakes. It's designed for row crop work and can handle various farm jobs, though it may not be as powerful as some other tractors of its time.
Show more...

Key Specifications

Category: Row Crop

Power Output: 41 hp (30.4 kW)

Transmission: Sliding gear

Drive Type: 2WD

Operating Weight: 3875 lb (1758 kg)

Fuel Type: Gasoline

Farmall Super H vs. Similar Tractors

Power Output

The Power Output for the Farmall Super H is Poor. It is greater than 4% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Operating Weight

The Operating Weight for the Farmall Super H is Poor. It is greater than 4% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Farmall Super H is Poor. It is greater than 4% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Farmall Super H is Poor. It is greater than 7% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
International Harvester
Model
C164
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Fuel Type
Gasoline
Induction Type
Natural aspirated
Cylinders
4
Displacement
164 ci (2.7 L)
Bore
3.50 in (88.9 mm)
Stroke
4.25 in (107.9 mm)
Rated RPM
1650
Power Output
41 hp (30.4 kW)

Transmission

Type
Sliding gear
Forward Gears
5
Reverse Gears
1

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Brake Type
Mechanical disc
