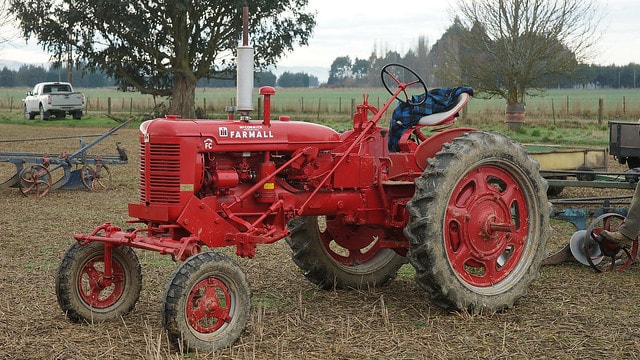

Farmall Super FC

Last Updated: June 2024

Overview

The Farmall Super FC tractor, a member of International Harvester's line, is a versatile, utility 2WD machine, propelled by a robust 4-cylinder gasoline, diesel, or distillate engine, with an alternative option for the fuel type. It is equipped with a 123 cubic inch engine that operates at 1650 RPM and delivers 25.6 horsepower. The manual steering system complements its unsynchronized gear transmission that offers 4 forward gears and 1 reverse gear. Boasting an impressive wheelbase of 91.5 inches, this tractor’s manual work ethic is accentuated by a 78-inch axle width and a 4.00x15 front tire size, and 9.00x36 rear tire size. The expansive 129.5-inch length is capped with a steering wheel height of 72.5 inches and an exhaust that stands at 83.125 inches tall, promising a commanding presence in the field. The combination of its legacy IH Touch Control hitch system and a liquid cooling system with a 13-quart capacity alludes to both its heritage and the practical design. Despite its age, the Super FC remains a testament to the foundations of modern farming machinery.
Show more...

Key Specifications

Category: Utility

Power Output: 25.6

Transmission: Unsynchronized gear

Drive Type: 2WD

Fuel Type: Gasoline, Diesel, Distillate

Farmall Super FC vs. Similar Tractors

Power Output
Below Average
Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
-
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline, Diesel, Distillate
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
123
Bore (in)
3.125
Stroke (in)
4
Rated RPM
1650
Power Output (hp)
25.6

Transmission

Type
Unsynchronized gear
Forward Gears
4
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
129.5
Width (in)
78
Height (in)
83.125
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
13
Front Tire Diameter (in)
15
Front Tire Width (in)
4
Rear Tire Diameter (in)
36
Rear Tire Width (in)
9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
IH Touch Control
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
