Farmall Super C

Last Updated: September 2024

Overview

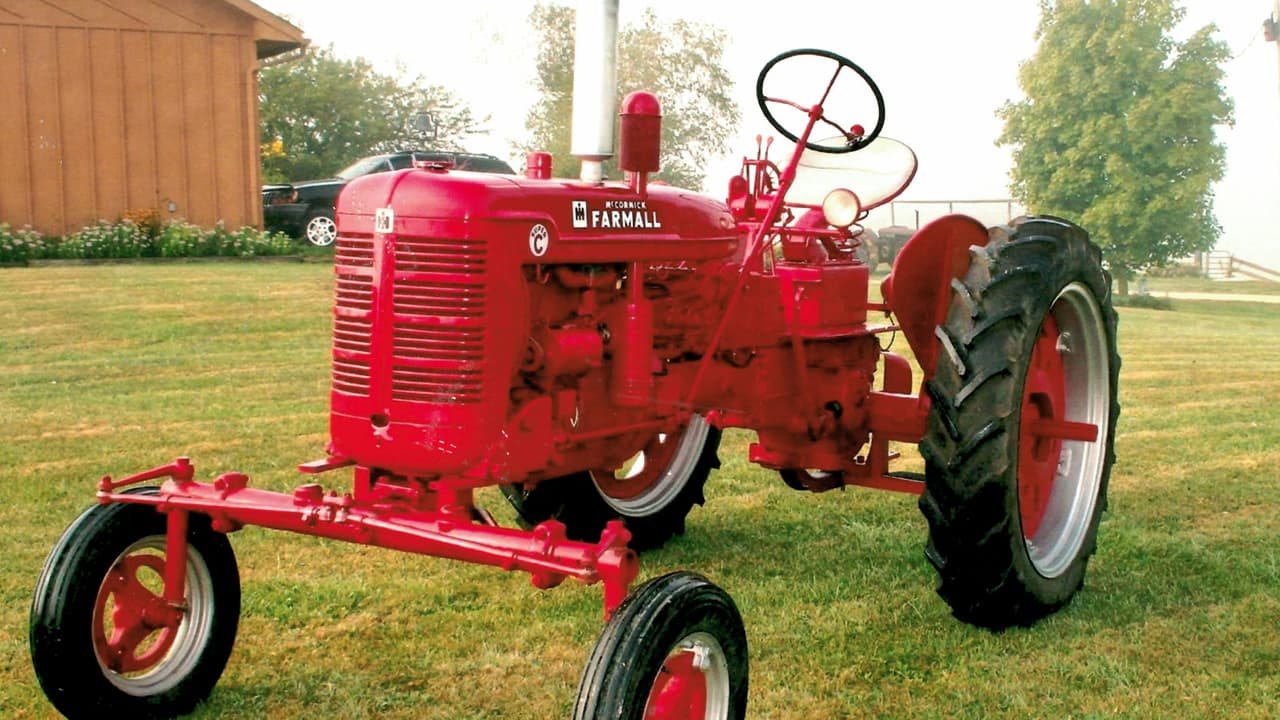

The Farmall Super C is a row crop tractor made from 1951 to 1954. It's a 2-wheel drive tractor with manual steering and a sliding gear transmission. The Super C has 4 forward gears and 1 reverse gear, making it easy to use in fields.

This tractor has a 4-cylinder gasoline engine made by International Harvester. The engine is liquid-cooled and naturally aspirated, with a displacement of 122.7 cubic inches. It produces 25.9 horsepower at 1650 rpm, which is below average for tractors. The Super C weighs 3100 pounds and is 123 inches long and 74.75 inches tall. It has agricultural tires on both front and rear wheels. The tractor features a Fast Hitch system and a rear PTO that spins at 540 rpm. It has an open operator station and uses an electric starter. The brakes are differential mechanical disc type.
Show more...

Key Specifications

Category: Row Crop

Power Output: 26 hp (19.3 kW)

Transmission: Sliding gear

Drive Type: 2WD

Operating Weight: 3100 lb (1406 kg)

Fuel Type: Gasoline

Farmall Super C vs. Similar Tractors

Power Output

The Power Output for the Farmall Super C is Poor. It is greater than 2% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Operating Weight

The Operating Weight for the Farmall Super C is Poor. It is greater than 2% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Farmall Super C is Poor. It is greater than 2% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Farmall Super C is Poor. It is greater than 7% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
International Harvester
Model
C123
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Fuel Type
Gasoline
Induction Type
Naturally Aspirated
Cylinders
4
Displacement
123 ci (2.0 L)
Bore
3.12 in (79.4 mm)
Stroke
4.00 in (101.6 mm)
Rated RPM
1650
Power Output
26 hp (19.3 kW)

Transmission

Type
Sliding gear
Forward Gears
4
Reverse Gears
1

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Brake Type
Differential mechanical disc
