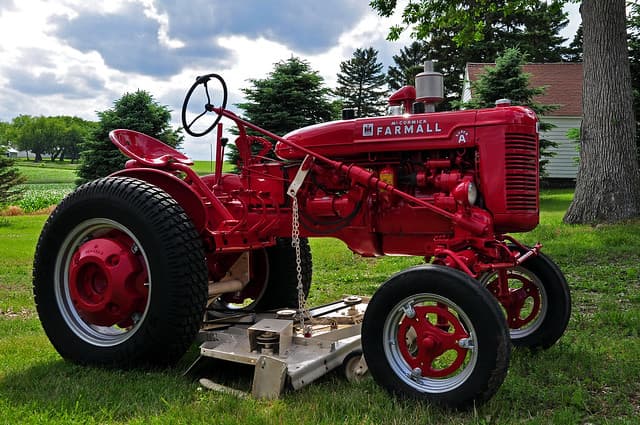

Farmall Super A-1

Last Updated: June 2024

Overview

The Farmall Super A-1 is a row-crop tractor that was part of the International Harvester line. It is characterized by its 4x2 2WD chassis and a manual steering system, tailored for various farming tasks on smaller acreages. Its power comes from a 4-cylinder International Harvester C-123 gasoline engine, which is liquid-cooled with a displacement of 123 cubic inches and operates at a rated speed of 1450 RPM. While the tractor's power output in horsepower is not specified, its sturdy build and capable engine likely provided ample power for day-to-day row-crop operations. The Super A-1 features a simple 4-speed gear transmission system, supported by a dry disc clutch. The front and rear tread widths are adjustable to suit different cropping needs. This tractor's dimensions, with a length of nearly 107 inches and a height at the exhaust of over 81 inches, illustrate its mid-size build, suitable for a variety of tasks, including plowing, planting, and harvesting with appropriate implements. Despite lacking information on the starting year of manufacture and specific attachment data, farmers likely valued this model for its reliability and versatility in agricultural applications.
Show more...

Key Specifications

Category: Row Crop

Transmission: Gear

Drive Type: 2WD

Fuel Type: Gasoline

Technical Specifications

Engine

Manufacturer
International Harvester
Model
C-123
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
123
Bore (in)
3.125
Stroke (in)
4
Rated RPM
1450
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
4
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
106.9
Width (in)
55.9
Height (in)
81.75 (Exhaust height as the highest point)
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
15
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (based on "Engine - Starter volts: 6")
Brake Type
-
Hydraulic System Type
-
