Farmall F-20

Last Updated: June 2024

Overview

The Farmall F20 tractor was a game-changer in the agricultural industry when it was introduced. Farmall, a part of International Harvester, manufactured these tractors with practicality in mind from 1932 to 1939 in Rock Island, Illinois, USA. The F20 model featured a 220.9 cubic-inch, four-cylinder International Harvester engine with liquid cooling, and a 4-speed transmission with a 279.4mm mechanical dry disc clutch. Rated at 26.7 horsepower and 1200 rpm, this tractor was built to deliver robust performance for its time. It was a 2WD tractor with a 4x2 chassis and manual steering, making it suitable for the row-crop duties it was designed for. The straightforward open operator station was a standard of the era, focusing on function over comfort. At an operating weight of 4400 lbs, it was not a light machine, emphasizing its build quality and durability.

Key Specifications

Category: Row Crop

Power Output: 26.7

Transmission: Sliding gear

Drive Type: 2WD

Operating Weight: 4400

Fuel Type: Distillate

Image Gallery

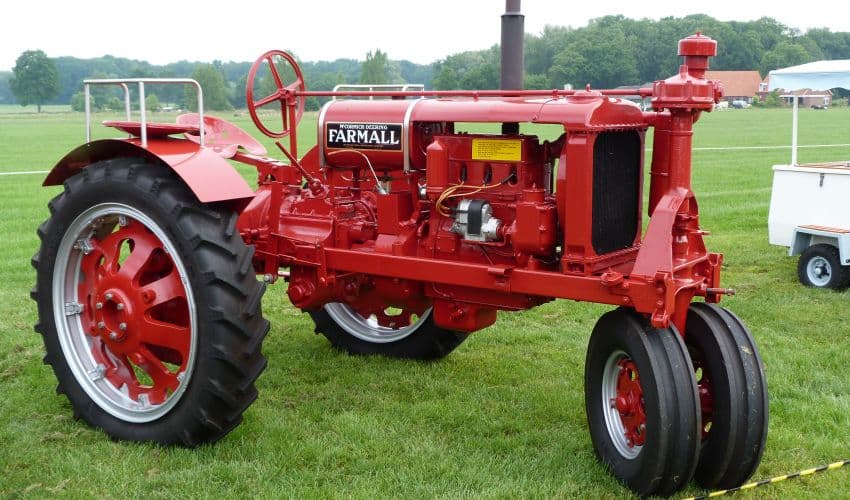

Farmall F-20 Tractor

Farmall F-20 vs. Similar Tractors

Power Output

Poor

Greater than 2% of similar tractors.

Operating Weight

Below Average

Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer: International Harvester
Model: International Harvester
Cooling Type: Liquid-cooled
Cylinder Orientation: Vertical
Valve Configuration: I-head
Fuel Type: Distillate
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 220.9
Bore (in): 3.75
Stroke (in): 5
Rated RPM: 1200
Power Output (hp): 26.7

Transmission

Type: Sliding gear
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 139.8
Width (in): 85.8
Height (in): 66.9
Operating Weight (lb): 4400

Power Take-Off (PTO)

PTO Type: Transmission
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 40 (early) / Unknown if different capacities apply to different production years or variants
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Steel
Manufacture - End Year: 1939
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Mechanical band
Hydraulic System Type: -
