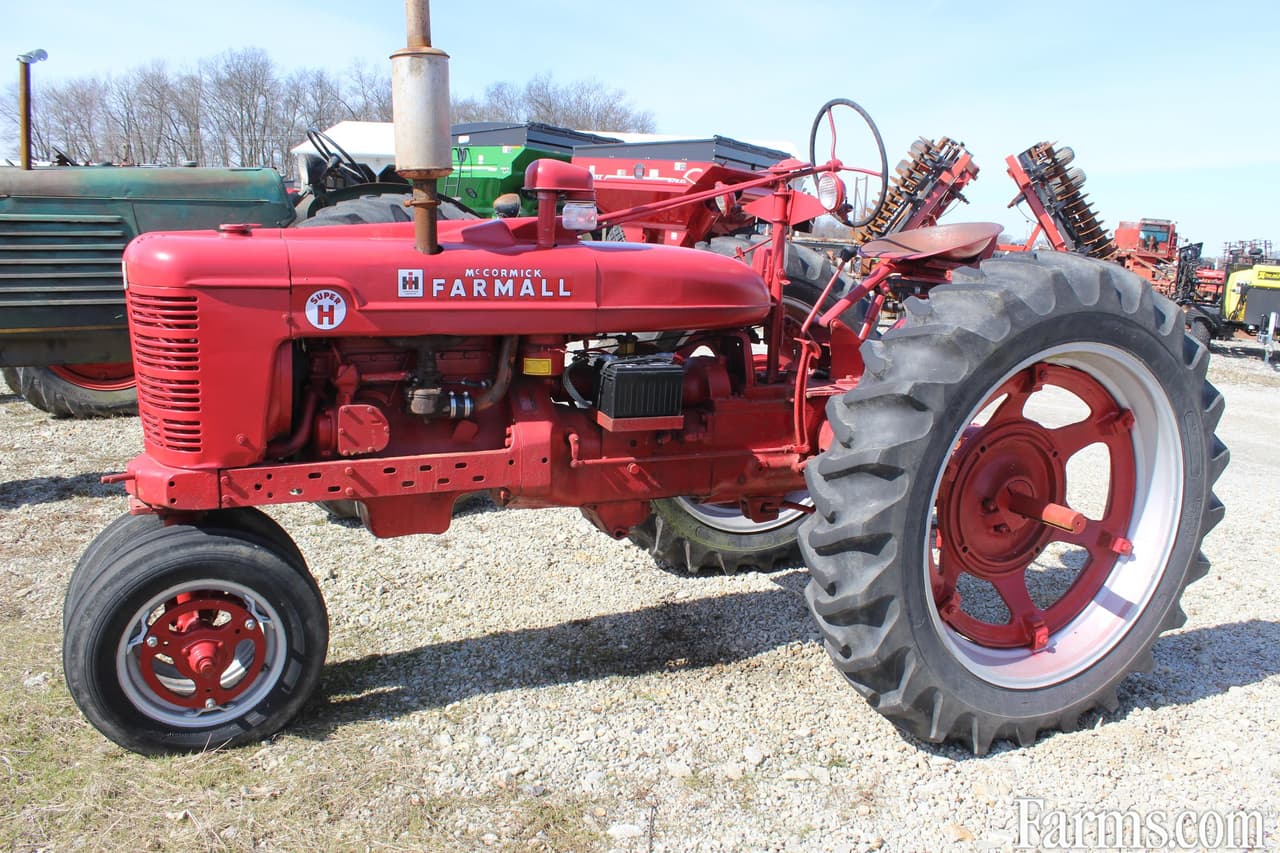

Farmall A-514

Last Updated: September 2024

Overview

The Farmall A-514 is a row crop tractor built for farmers who need a reliable machine for their fields. It has a 2-wheel drive system and a manual steering setup, which makes it easy to control. The tractor comes with a gear transmission that offers 5 forward speeds and 1 reverse speed, giving drivers good options for different tasks.

Under the hood, the A-514 has a diesel engine made by International Harvester. This engine has 4 cylinders and is cooled by liquid to keep it running smoothly. It can produce 50.5 horsepower, which is on the lower end compared to other tractors. The engine size is also below average, but it runs at a very low speed of 1450 rpm. This tractor has a Category II hitch, which is useful for attaching various farm tools. It starts up easily with an electric starter, making it convenient for daily use on the farm.
Show more...

Key Specifications

Category: Row Crop

Power Output: 50 hp (37.7 kW)

Transmission: Gear

Drive Type: 2WD

Fuel Type: Diesel

Farmall A-514 vs. Similar Tractors

Power Output

The Power Output for the Farmall A-514 is Poor. It is greater than 6% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Farmall A-514 is Below Average. It is greater than 18% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Farmall A-514 is Poor. It is greater than 4% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
International Harvester
Model
AD-264
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
4
Displacement
264 ci (4.3 L)
Bore
4.00 in (101.6 mm)
Stroke
5.25 in (133.3 mm)
Rated RPM
1450
Power Output
50 hp (37.7 kW)

Transmission

Type
Gear
Forward Gears
5
Reverse Gears
1

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
