Farmall 460

Last Updated: June 2024

Overview

The Farmall 460 is a robust row-crop tractor, produced by International Harvester from 1958 to 1963. As a versatile 4x2 2WD tractor, it is engineered to effectively handle a variety of tasks on the farm. The Farmall 460 comes equipped with a powerful International Harvester engine, available in gasoline, LP gas, or diesel, and outputs 50 HP at 1800 RPM. Offering 5 forward gears and 1 reverse through its sliding gear transmission with the option of a Torque Amplifier, detailed control over speed is achievable for different tasks. The IH Fast Hitch system improves convenience when attaching implements, and the durable differential mechanical disc brakes ensure reliable stopping power. This model also features an open operator station and power steering to ease operations during long working hours.

Key Specifications

Category: Row Crop

Power Output: 50

Transmission: Sliding gear

Drive Type: 2WD

Operating Weight: 5835 (gas)

Fuel Type: Gasoline, LP gas, Diesel

Image Gallery

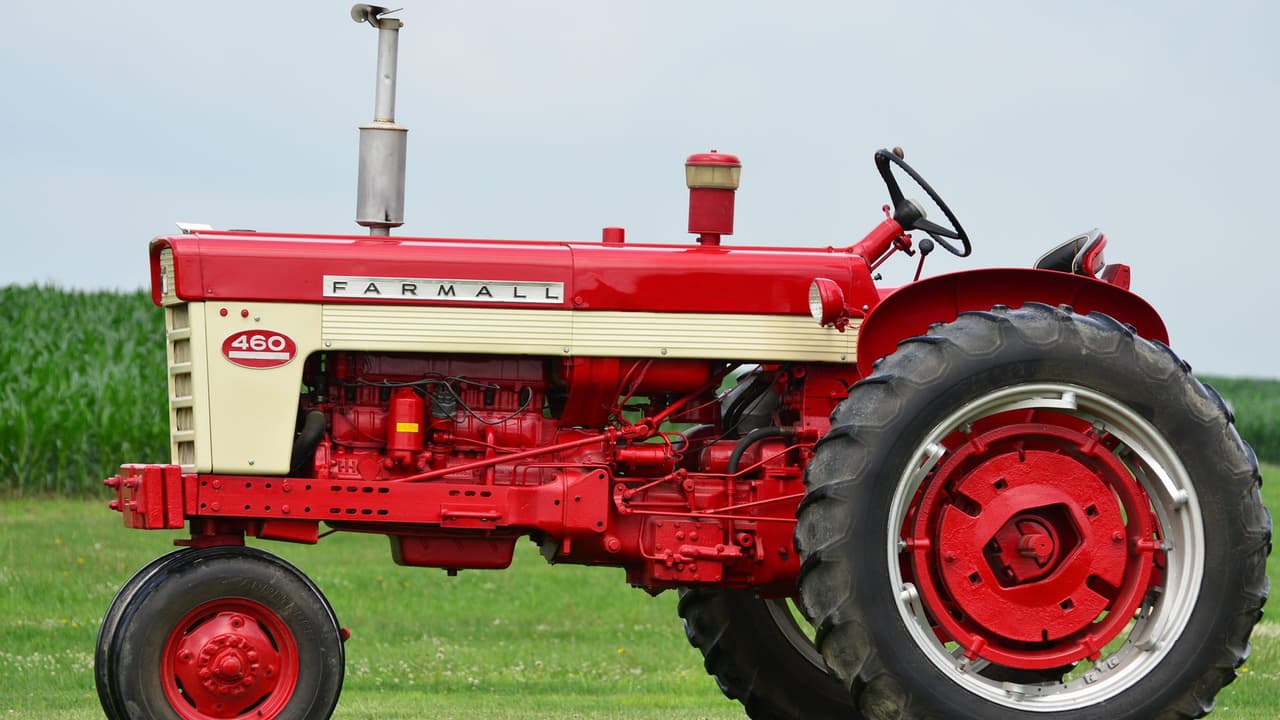

Farmall 460 Tractor

Farmall 460 vs. Similar Tractors

Power Output

Poor

Greater than 5% of similar tractors.

Operating Weight

Below Average

Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer: International Harvester
Model: C221 (Gasoline/LP gas), D236 (Diesel)
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline, LP gas, Diesel
Induction Type: Naturally aspirated
Cylinders: 6
Displacement (ci): 221 (Gasoline/LP gas), 236 (Diesel)
Bore (in): 3.54 (Gasoline/LP gas), 3.7 (Diesel)
Stroke (in): 3.7
Rated RPM: 1800
Power Output (hp): 50

Transmission

Type: Sliding gear
Forward Gears: 5
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 140
Width (in): 83.5 (min)
Height (in): 78 (steering wheel for row-crop)
Operating Weight (lb): 5835 (gas)

Power Take-Off (PTO)

PTO Type: Rear, independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 5.5
Rear Tire Diameter (in): 38
Rear Tire Width (in): 12.4
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1963
Hitch Type: IH Fast Hitch
Hitch Category: 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Differential mechanical disc
Hydraulic System Type: Closed center
