Farmall 350

Last Updated: June 2024

Overview

The Farmall 350 is a 2WD utility tractor, initially designed for row-crop work. This tractor was produced by Farmall, a part of International Harvester, from 1956 to 1958. It was available in both manual and optional power steering configurations, and could be fitted with two engine options: a 3.2 L diesel and a 2.9 L gasoline or LP-gas engine. The 350's significant features include its sliding gear or two-speed power shift transmissions, 5.50-16 front and 11.00-38 rear agricultural tires, and a 540 rpm independent rear PTO. This model was known for its versatility, being well-suited for various farming tasks with an open operator station for ease of access and operation.

Key Specifications

Category: Row Crop

Transmission: Sliding gear / Two-speed power shift

Drive Type: 2WD

Operating Weight: 5331 - 5475

Fuel Type: Diesel / Gasoline / LP-gas

Image Gallery

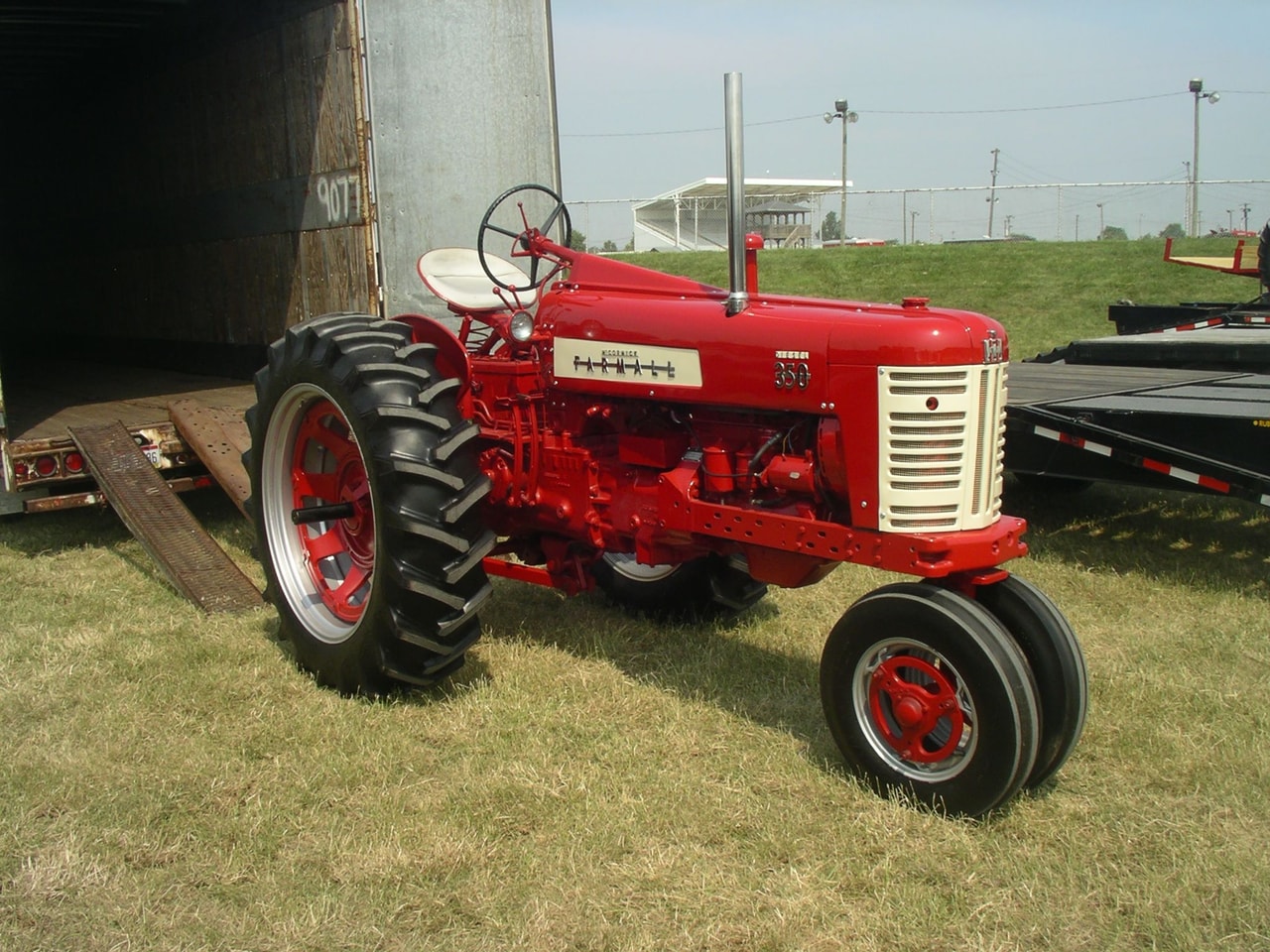

Farmall 350 Tractor

Farmall 350 vs. Similar Tractors

Operating Weight

Above Average

Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer: Continental / International Harvester
Model: Continental D193 / International Harvester C175
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel / Gasoline / LP-gas
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 193.0 / 175.0
Bore (in): 3.74 / 3.62
Stroke (in): 4.37 / 4.25
Rated RPM: 1750 / 2000
Power Output (hp): -

Transmission

Type: Sliding gear / Two-speed power shift
Forward Gears: 5 | 10
Reverse Gears: 1 | 2
Total Gears: -

Dimensions

Length (in): 135.8
Width (in): 82.7
Height (in): 77.2
Operating Weight (lb): 5331 - 5475

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual / Power (optional)
Coolant Capacity (qts): 17.2 / 19
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: 1958
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
