Farmall 340

Last Updated: June 2024

Overview

The Farmall 340 is a row-crop tractor designed for a variety of tasks on a farm. It was produced from 1958 to 1963 and came in two main configurations, featuring either a four-cylinder gasoline or a four-cylinder diesel engine. The tractor featured a simple, rugged design with manual steering and a choice of two transmission types; sliding gear or partial power shift known as Torque Amplifier, providing different gear options. The open operator station was standard, and with a wheelbase of over 79 inches, it offered stability in a wide range of agricultural tasks. The 340 also included a rear independent PTO running at 540 rpm, which is essential for using various implements. The hydraulic system of the tractor was based on an open center design, sufficient for that time's agricultural machinery. Despite being an older model, the Farmall 340 remains notable for its durability and ease of maintenance.

Key Specifications

Category: Row Crop

Power Output: 47 hp

Transmission: Sliding gear with dry disc clutch / Partial power shift with dry disc clutch

Drive Type: 2WD

Operating Weight: 4740 (Gasoline) / 5192 (Diesel) (TS_Weight)

Fuel Type: Gasoline / Diesel

Image Gallery

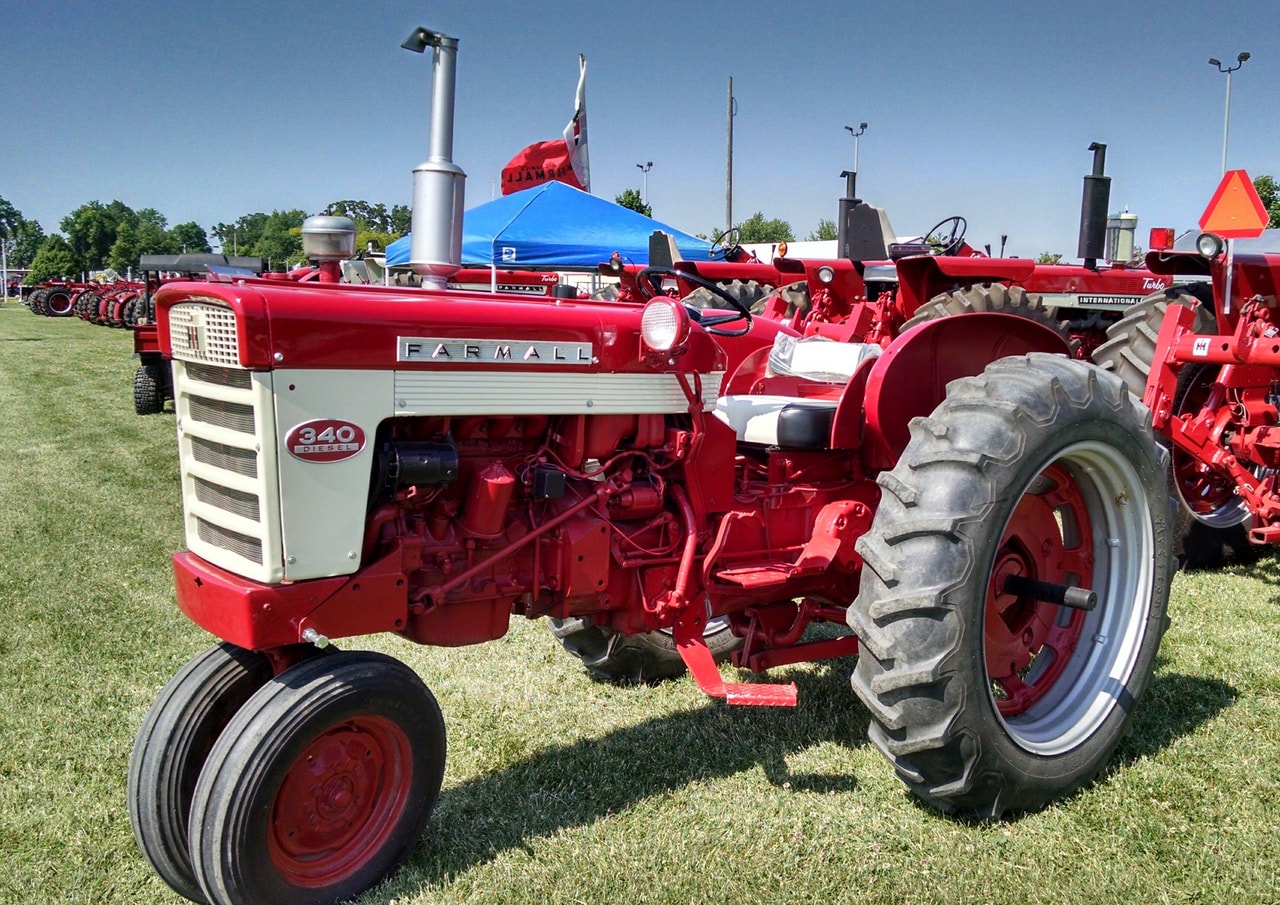

Farmall 340 Tractor

Farmall 340 vs. Similar Tractors

Power Output

Poor

Greater than 4% of similar tractors.

Operating Weight

Above Average

Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer: International Harvester
Model: C-135 (Gasoline) / D-166 (Diesel)
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline / Diesel
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 135 cu·in (Gasoline) / 166 cu·in (Diesel)
Bore (in): 3.27 (Gasoline) / 3.7 (Diesel)
Stroke (in): 4.06 (Gasoline) / 3.86 (Diesel)
Rated RPM: 2000
Power Output (hp): 47 hp

Transmission

Type: Sliding gear with dry disc clutch / Partial power shift with dry disc clutch
Forward Gears: 5 (sliding gear) / 10 (Torque Amplifier)
Reverse Gears: 1 (sliding gear) / 2 (Torque Amplifier)
Total Gears: -

Dimensions

Length (in): 116.9 (TS_Length)
Width (in): 63.8 (TS_Width)
Height (in): 58.7 (TS_Height)
Operating Weight (lb): 4740 (Gasoline) / 5192 (Diesel) (TS_Weight)

Power Take-Off (PTO)

PTO Type: Independent (TS_Rear PTO type)
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 15 (Gasoline) / 18.6 (Diesel)
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1963
Hitch Type: -
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric (TS_Starter)
Brake Type: Differential mechanical dry disc (TS_Brakes)
Hydraulic System Type: Open center (Type)
