Farmall 240

Last Updated: June 2024

Overview

The Farmall 240 is a 2WD row-crop tractor that was manufactured by Farmall, part of International Harvester, from 1958 to 1962. This tractor features a 2.0 L four-cylinder gasoline engine with a liquid cooling system, a bore and stroke of 3.11 inches by 4.02 inches, and a 6V electrical system. It has a manual steering system, mechanical disc brakes, and a gear type transmission with 4 forward and 1 reverse gear. It operates with a dry disc clutch and has a total operating weight of 3763 lbs. The Farmall 240 is configured with manual steering and an open operator station. At its rear, it houses an IH Fast Hitch and is capable of running with a 540 rpm live PTO. It can work with various attachments, including an optional International Harvester 2001 loader.

Key Specifications

Category: Row Crop

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3763

Fuel Type: Gasoline

Image Gallery

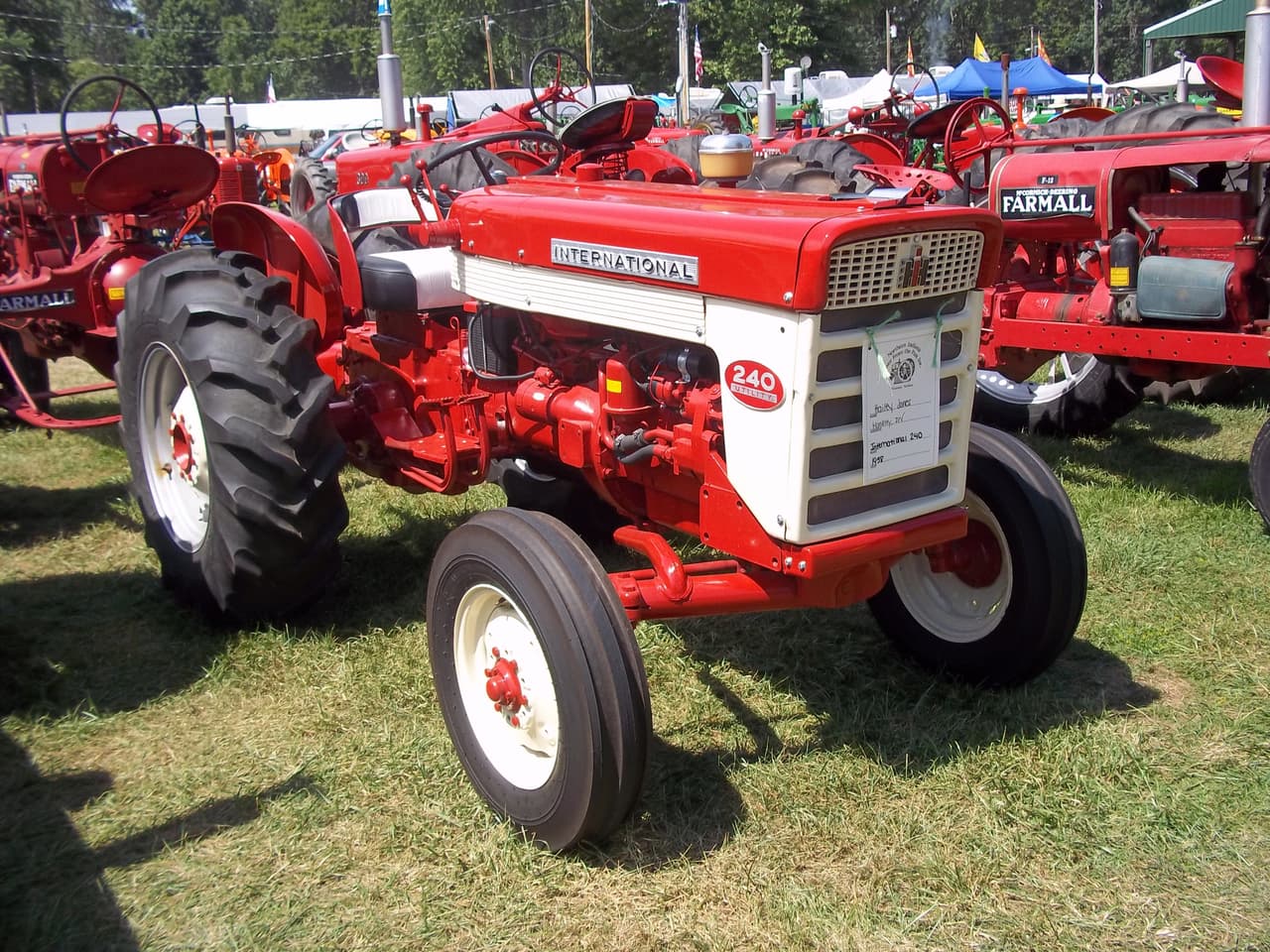

Farmall 240 Tractor

Farmall 240 vs. Similar Tractors

Operating Weight

Below Average

Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer: International Harvester
Model: C-123
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 122.7
Bore (in): 3.11
Stroke (in): 4.02
Rated RPM: 2000
Power Output (hp): -

Transmission

Type: Gear
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): 64
Operating Weight (lb): 3763

Power Take-Off (PTO)

PTO Type: Live
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 15
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 36
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1962
Hitch Type: IH Fast Hitch
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: Mechanical disc
Hydraulic System Type: Open center
