Eicher 5660

Last Updated: June 2024

Overview

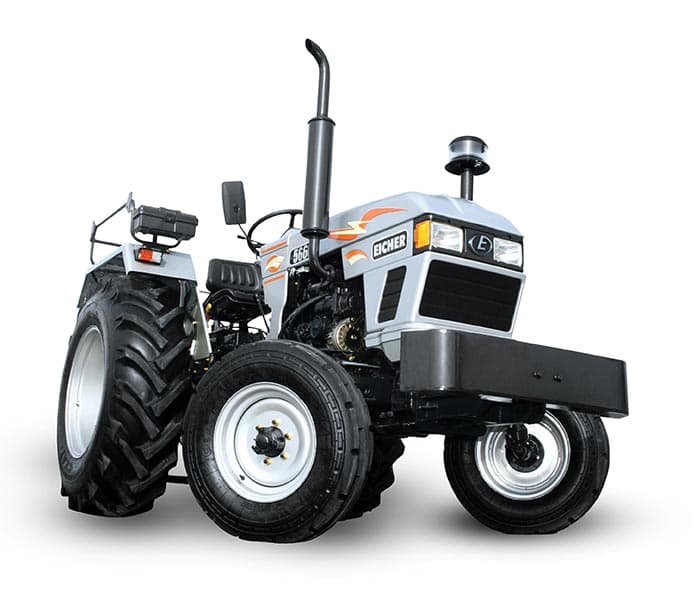

The Eicher 5660 is a diesel-powered tractor equipped with a liquid-cooled Eicher 320 DED engine. It generates a power output of 51.6 hp and operates at a rated RPM of 2150. The tractor has a chassis configuration of 4x2, a manual steering type, and an 8-speed gear transmission. The tractor has a wheelbase of 78 inches and an operating weight of 4850 lbs. The tires are designed for agricultural use, with the front tires measuring 7.50 inches in width and the rear tires measuring 14.9 inches. The tractor is robust in its design, measuring 144.1 inches in length, 70.1 inches in width, and 88.2 inches in height.
Show more...

Key Specifications

Power Output: 51.6

Transmission: Gear

Drive Type: 2WD

Operating Weight: 4850

Fuel Type: Diesel

Image Gallery

Eicher 5660 Tractor Eicher 5660 Tractor Eicher 5660 Tractor Eicher 5660 Tractor Eicher 5660 Tractor Eicher 5660 Tractor Eicher 5660 Tractor Eicher 5660 Tractor Eicher 5660 Tractor Eicher 5660 Tractor

Technical Specifications

Engine

Manufacturer
Eicher
Model
320 DED
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
201.3
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2150
Power Output (hp)
51.6

Transmission

Type
Gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
144.1
Width (in)
70.1
Height (in)
88.2
Operating Weight (lb)
4850

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
14.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
