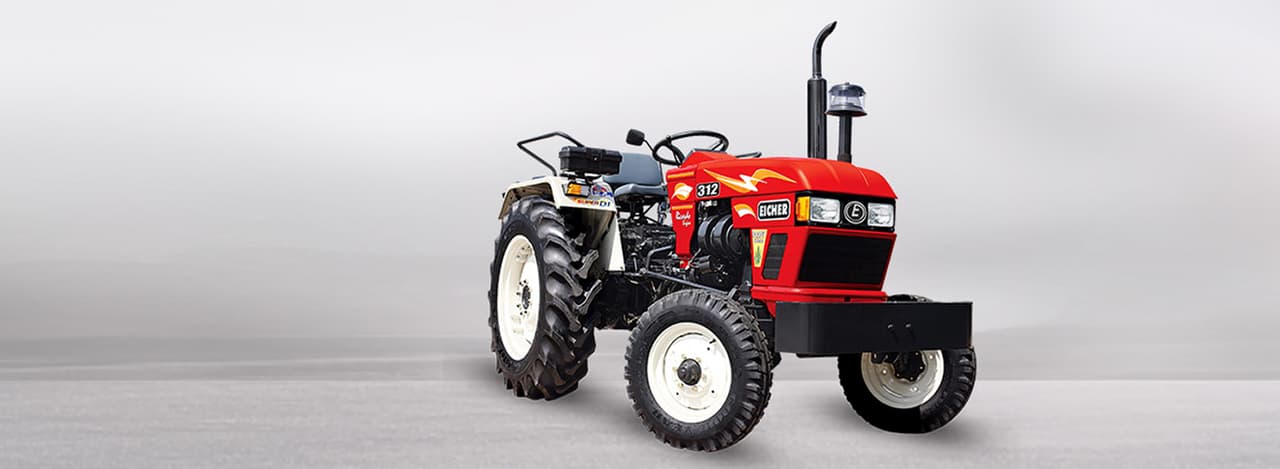

Eicher 312

Last Updated: June 2024

Overview

The Eicher 312, model 298 EI, is a reliable tractor with a compact 4x2 2WD configuration and manual steering. It operates with an 8-speed gear transmission system and is capable of hitting speeds in 8 forward and 2 reverse gears. Manufactured by Eicher, the tractor's engine details are remarkable — a diesel powered, 2-cylinder, direct injection system that's air-cooled for efficiency. It boasts 34 horsepower output at a maximum rated RPM of 2150. The tractor operates with a dry disc clutch, and it measures 134.9 inches in length, 65.4 inches in width, and 88.9 inches in height — a perfect size for navigating different terrain. Additionally, its operating weight is tagged at 4189 lbs, proving its solid and sturdy build.
Show more...

Key Specifications

Power Output: 34

Transmission: Gear

Drive Type: 2WD

Operating Weight: 4189

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Eicher
Model
298 EI
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
2
Displacement (ci)
119.8
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2150
Power Output (hp)
34

Transmission

Type
Gear
Forward Gears
8
Reverse Gears
2
Total Gears
10

Dimensions

Length (in)
134.9
Width (in)
65.4
Height (in)
88.9
Operating Weight (lb)
4189

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
6
Rear Tire Diameter (in)
-
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
