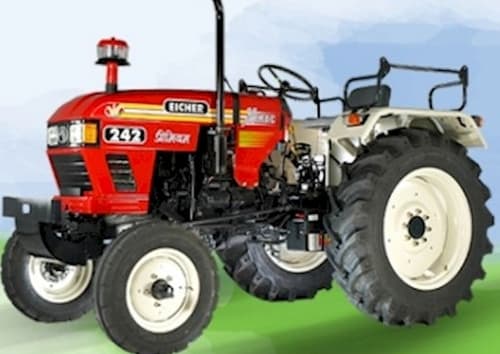

Eicher 242 XTRAC

Last Updated: September 2024

Overview

The Eicher 242 XTRAC is a compact and versatile 2WD tractor designed for various farming tasks. It features a manual steering system and a gear transmission with 8 forward and 2 reverse gears, giving farmers 10 gears in total to work with. This tractor is powered by an Eicher 115 NC engine, which is air-cooled and runs on diesel fuel.

The engine of the 242 XTRAC is a single-cylinder model with direct injection. It has a displacement of 95.1 ci and produces 24 hp at 1650 rpm. The tractor's compact size, measuring 128.3 inches long, 64 inches wide, and 80.3 inches tall, makes it easy to maneuver in tight spaces. With an operating weight of 3825 lb and a ground clearance of 16.1 inches, this tractor offers a good balance of stability and clearance for various field conditions. The 242 XTRAC also features an open center hydraulic system and an electric starter for easy operation.
Show more...

Key Specifications

Power Output: 24 hp (17.9 kW)

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3825 lb (1735 kg)

Fuel Type: Diesel

Eicher 242 XTRAC vs. Similar Tractors

Power Output

The Power Output for the Eicher 242 XTRAC is Below Average. It is greater than 15% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Eicher 242 XTRAC is Average. It is greater than 32% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Eicher 242 XTRAC is Below Average. It is greater than 21% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Eicher 242 XTRAC is Poor. It is greater than 5% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Eicher
Model
115 NC
Cooling Type
Air-cooled
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
1
Displacement
95 ci (1.6 L)
Bore
4.53 in (115.0 mm)
Stroke
5.91 in (150.0 mm)
Rated RPM
1650
Power Output
24 hp (17.9 kW)

Transmission

Type
Gear
Forward Gears
8
Reverse Gears
2
Total Gears
10

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
