Ebro 350

Last Updated: June 2024

Overview

The Ebro 350 is a reliable utility tractor powered by a Perkins AD3.152 diesel engine. With a 3-cylinder, liquid-cooled system, it delivers an impressive power output of 47 hp. The engine's displacement stands at 152 cubic inches, with a bore and stroke measured at 3.60x5.00 inches. Operated via an 8-speed manual transmission, the 2WD tractor is well-suited for various farm duties. The tractor maneuvers on an agricultural tire type and features a rear hitch, assumed to be a three-point hitch system. The Ebro 350, with its open operator station, promises an uncompromised view of the job site, making it a preferred choice for diverse utility work.

Key Specifications

Category: Utility

Power Output: 47

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4034

Fuel Type: Diesel

Image Gallery

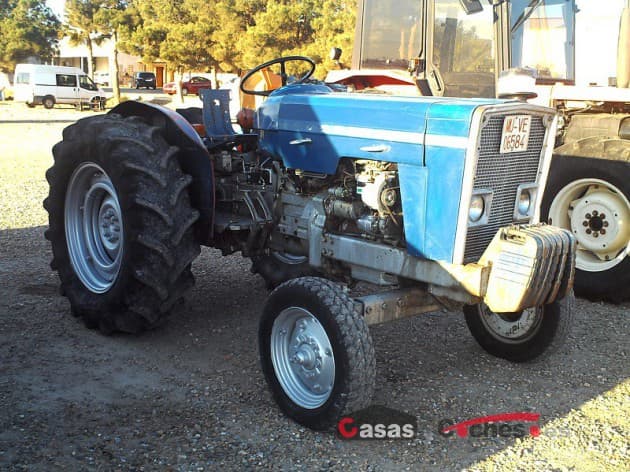

Ebro 350 Tractor

Ebro 350 vs. Similar Tractors

Power Output

Average

Greater than 45% of similar tractors.

Operating Weight

Average

Greater than 36% of similar tractors.

Technical Specifications

Engine

Manufacturer: Perkins
Model: AD3.152
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated (Assumed based on engine model)
Cylinders: 3
Displacement (ci): 152
Bore (in): 3.6
Stroke (in): 5
Rated RPM: 2250
Power Output (hp): 47

Transmission

Type: Manual
Forward Gears: 8
Reverse Gears: 2
Total Gears: 10

Dimensions

Length (in): 128.7
Width (in): 72
Height (in): 59.8
Operating Weight (lb): 4034

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): 11.6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (Assumed based on type of tractor)
Hitch Category: II
Hitch Position: Rear (Assumed based on standard tractor design)
Hitch Capacity (lb): -
Operator Station Type: Open (Assumed based on tractor category)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open (Assumed based on standard tractor design)
