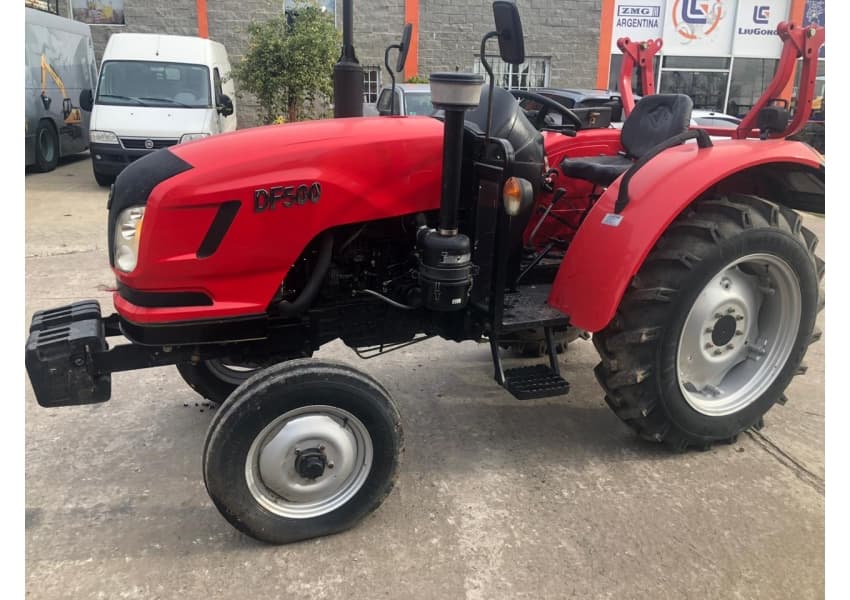

Dongfeng DF-500

Last Updated: September 2024

Overview

The Dongfeng DF-500 is a compact and versatile tractor designed for various farming tasks. It features a 2WD drive system and hydraulic power steering, making it easy to maneuver in fields and around the farm. The tractor comes with a 12-forward and 3-reverse gear transmission, giving farmers plenty of options for different jobs.

Under the hood, the DF-500 is powered by a Dongfeng LR4105T engine. This 4-cylinder diesel engine is liquid-cooled and has a displacement of 264.2 cubic inches. It produces 55 horsepower at 2300 RPM, providing enough power for most small to medium-sized farm operations. The tractor's compact size, measuring 153.1 inches long, 72 inches wide, and 96.1 inches tall, allows it to work in tight spaces. With an operating weight of 4895 pounds, it's sturdy enough for tough jobs but not too heavy for the fields. The DF-500 also features a Category 3 rear hitch, making it compatible with a wide range of farm implements.
Show more...

Key Specifications

Power Output: 55 hp (41.0 kW)

Drive Type: 2WD

Operating Weight: 4895 lb (2220 kg)

Fuel Type: Diesel

Dongfeng DF-500 vs. Similar Tractors

Power Output

The Power Output for the Dongfeng DF-500 is Average. It is greater than 46% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Dongfeng DF-500 is Average. It is greater than 42% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Dongfeng DF-500 is Average. It is greater than 64% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Dongfeng DF-500 is Average. It is greater than 51% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Dongfeng
Model
LR4105T
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
4
Displacement
264 ci (4.3 L)
Bore
4.13 in (105.0 mm)
Stroke
4.92 in (125.0 mm)
Rated RPM
2300
Power Output
55 hp (41.0 kW)

Transmission

Forward Gears
12
Reverse Gears
3

Drivetrain

Chassis
4x2
Drive Type
2WD
Steering Type
Hydraulic Power
