Dongfeng DF-454

Last Updated: June 2024

Overview

The Dongfeng DF-454 tractor is designed for a variety of uses. With its 45 horsepower engine and 4-wheel drive, it is capable of handling a wide range of agricultural tasks. The hydraulic power steering provides ease of operation, while the 12-speed transmission offers flexibility in various terrain. The four-cylinder diesel engine is liquid-cooled for optimal performance. At an operating weight of 3837 lbs, and with dimensions of 146.7 inches in length, 63.6 inches in width and 85.4 inches in height, the DF-454 is substantial yet maneuverable. It features a wheelbase of 75.1 inches for stability and ag tires for better traction in farm settings.

Key Specifications

Power Output: 45

Transmission: 12-speed

Drive Type: 4WD

Operating Weight: 3837

Fuel Type: Diesel

Image Gallery

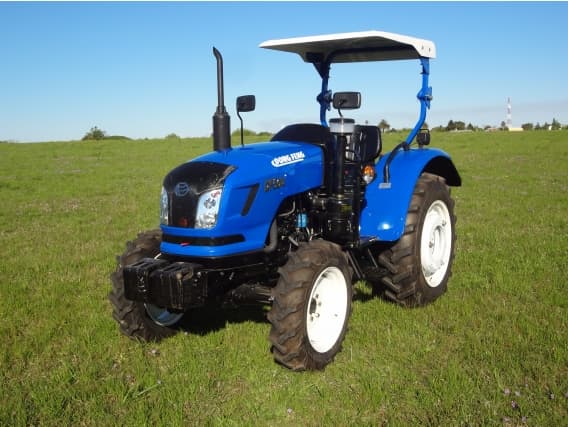

Dongfeng DF-454 Tractor

Technical Specifications

Engine

Manufacturer: Dongfeng
Model: JD495T
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 4
Displacement (ci): 182.9
Bore (in): 3.74
Stroke (in): 4.134
Rated RPM: 2400
Power Output (hp): 45

Transmission

Type: 12-speed
Forward Gears: 12
Reverse Gears: 3
Total Gears: 12

Dimensions

Length (in): 146.7
Width (in): 63.6
Height (in): 85.4
Operating Weight (lb): 3837

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydraulic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 7.5
Rear Tire Diameter (in): -
Rear Tire Width (in): 12.4
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 2
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
