Dongfeng DF-354

Last Updated: June 2024

Key Specifications

Power Output: 35

Transmission: Manual

Drive Type: 4WD

Operating Weight: 3054

Fuel Type: Diesel

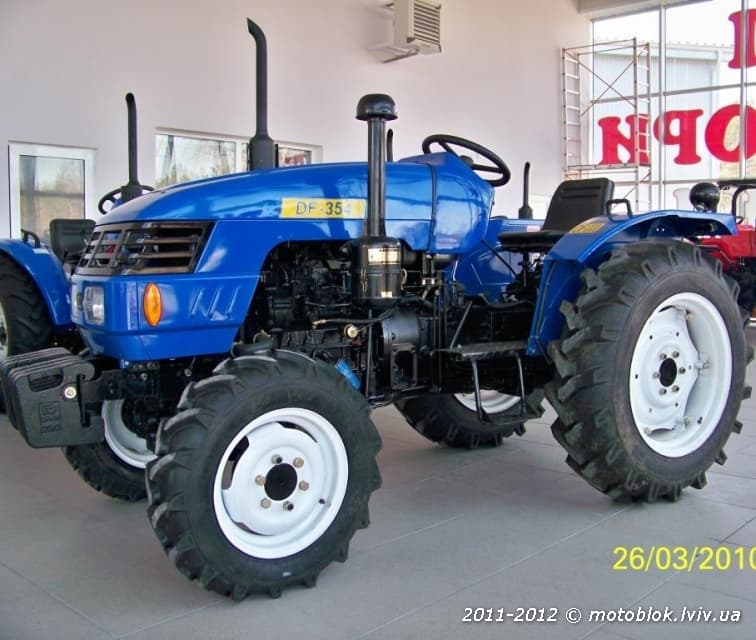

Image Gallery

Dongfeng DF-354 Tractor Dongfeng DF-354 Tractor Dongfeng DF-354 Tractor Dongfeng DF-354 Tractor Dongfeng DF-354 Tractor Dongfeng DF-354 Tractor Dongfeng DF-354 Tractor Dongfeng DF-354 Tractor

Technical Specifications

Engine

Manufacturer
Dongfeng
Model
TY395
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
3
Displacement (ci)
136.1
Bore (in)
3.74
Stroke (in)
4.134
Rated RPM
2400
Power Output (hp)
35

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
2
Total Gears
10

Dimensions

Length (in)
132.7
Width (in)
59.1
Height (in)
63.8
Operating Weight (lb)
3054

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
8.7
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Cat I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
