Dongfeng DF-304

Last Updated: June 2024

Overview

The Dongfeng DF-304 is a compact utility tractor, featuring a potent 3-cylinder liquid-cooled diesel engine that outputs 30 horsepower. At a rated RPM of 2500, it's perfect for a variety of tasks around the farm or yard. The tractor boasts a displacement of 110.6 ci, cooled effectively with an 8.7-qt coolant capacity, ensuring maximum performance. The engine has a bore and stroke of 3.543x3.74 inches. The DF-304 utilizes an 8-speed manual transmission with 2 reverse gears.

Key Specifications

Category: Utility

Power Output: 30

Transmission: Manual

Drive Type: 4WD

Operating Weight: 2933

Fuel Type: Diesel

Image Gallery

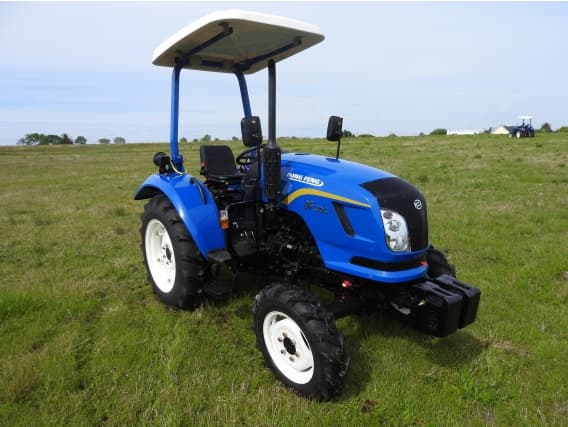

Dongfeng DF-304 Tractor

Dongfeng DF-304 vs. Similar Tractors

Power Output

Below Average

Greater than 25% of similar tractors.

Operating Weight

Below Average

Greater than 24% of similar tractors.

Technical Specifications

Engine

Manufacturer: Dongfeng
Model: ZN390T
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 110.6
Bore (in): 3.543
Stroke (in): 3.74
Rated RPM: 2500
Power Output (hp): 30

Transmission

Type: Manual
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 127.4
Width (in): 58.5
Height (in): 60.5
Operating Weight (lb): 2933

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power Steering
Coolant Capacity (qts): 8.7
Front Tire Diameter (in): -
Front Tire Width (in): 6.5
Rear Tire Diameter (in): -
Rear Tire Width (in): 11.2
Front/Rear Rim Diameter (in): 16/24
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
