Dongfeng DF-300

Last Updated: June 2024

Overview

The Dongfeng DF-300 is a versatile tractor that boasts a 30 horsepower, ZN390T diesel engine. This efficient 3-cylinder engine is liquid-cooled and can reach up to 2500 RPM, providing reliable power for a variety of tasks. With an 8-speed manual transmission, the DF-300 offers substantial control and maneuverability to the operator. The tractor follows a 4x2 2WD wheel configuration, with agriculture-standardized tires. The tractor's compact size, having a length of 127.4 inches, a width of 54.5 inches, and a height of 60.5 inches, enables it to navigate and operate in varying terrain and work conditions. The DF-300, with its operating weight of 2734 lbs, demonstrates solid stability for general-purpose farming and agriculture-related tasks.

Key Specifications

Power Output: 30

Transmission: Manual

Drive Type: 2WD

Operating Weight: 2734

Fuel Type: Diesel

Image Gallery

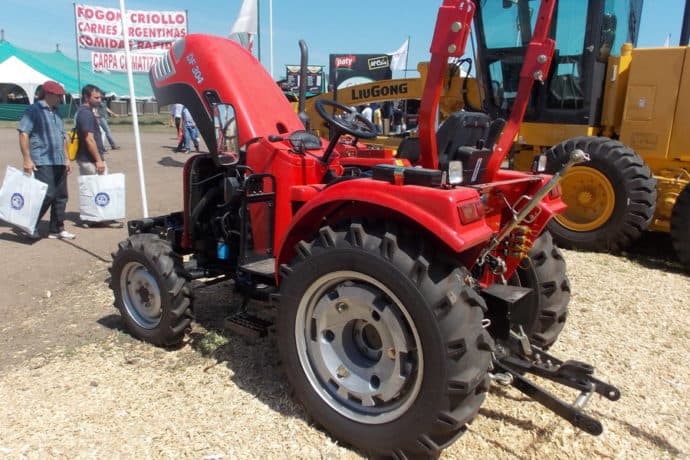

Dongfeng DF-300 Tractor

Technical Specifications

Engine

Manufacturer: Dongfeng
Model: ZN390T
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 110.6
Bore (in): 3.543
Stroke (in): 3.74
Rated RPM: 2500
Power Output (hp): 30

Transmission

Type: Manual
Forward Gears: 8
Reverse Gears: 2
Total Gears: 10

Dimensions

Length (in): 127.4
Width (in): 54.5
Height (in): 60.5
Operating Weight (lb): 2734

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agriculture
Manufacture - End Year: -
Hitch Type: Rear Type: I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
