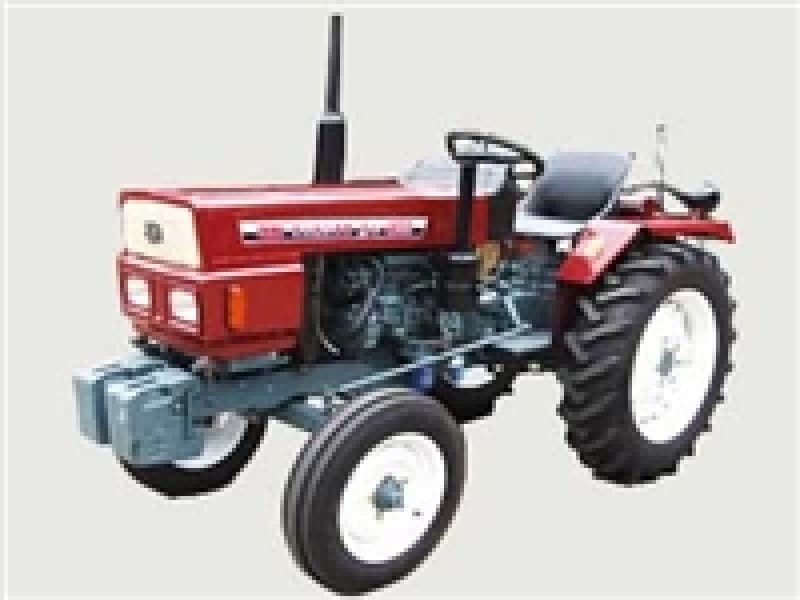

Dongfeng DF-200

Last Updated: June 2024

Key Specifications

Power Output: 24.5

Transmission: Manual

Drive Type: 2WD

Operating Weight: 2073

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Dongfeng
Model
Y380T
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
83.9
Bore (in)
3.15
Stroke (in)
3.543
Rated RPM
2600
Power Output (hp)
24.5

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
2
Total Gears
8

Dimensions

Length (in)
104.8
Width (in)
45.6
Height (in)
53.7
Operating Weight (lb)
2073

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydraulic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
4
Rear Tire Diameter (in)
-
Rear Tire Width (in)
8.3
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rear Type: I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
