Deutz-Fahr M620

Last Updated: June 2024

Overview

The Deutz-Fahr model M620 is a powerful tractor designed for various agricultural applications. It is equipped with a Deutz turbocharged intercooled diesel engine, providing a powerful output of 155 hp. The M620 features a 4x4 MFWD 4WD chassis, along with power steering and a transmission type of partial power shift. This model was manufactured from 2007 to 2009.

Key Specifications

Power Output: 155

Transmission: Partial Power Shift

Drive Type: 4WD

Operating Weight: 12730

Fuel Type: Diesel

Image Gallery

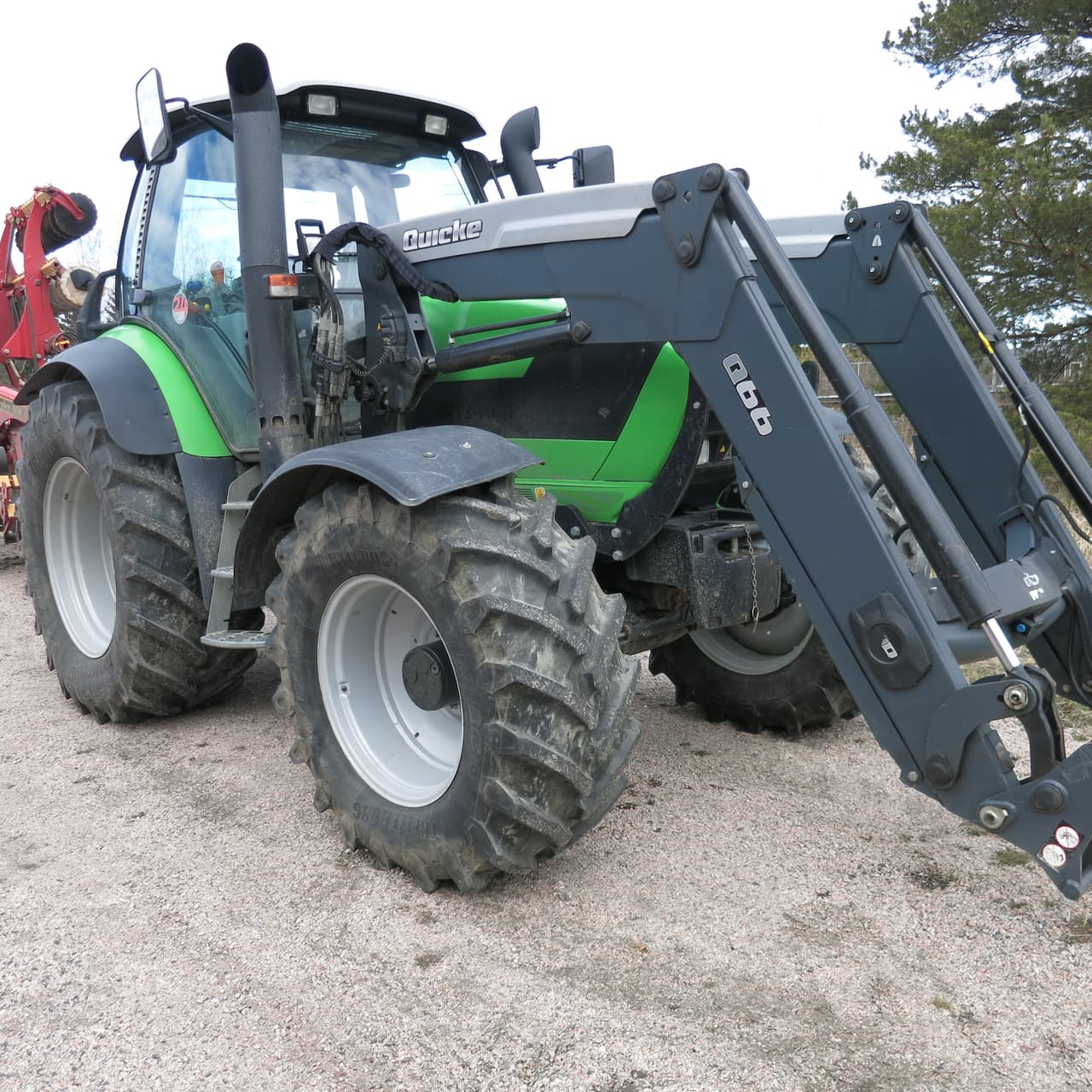

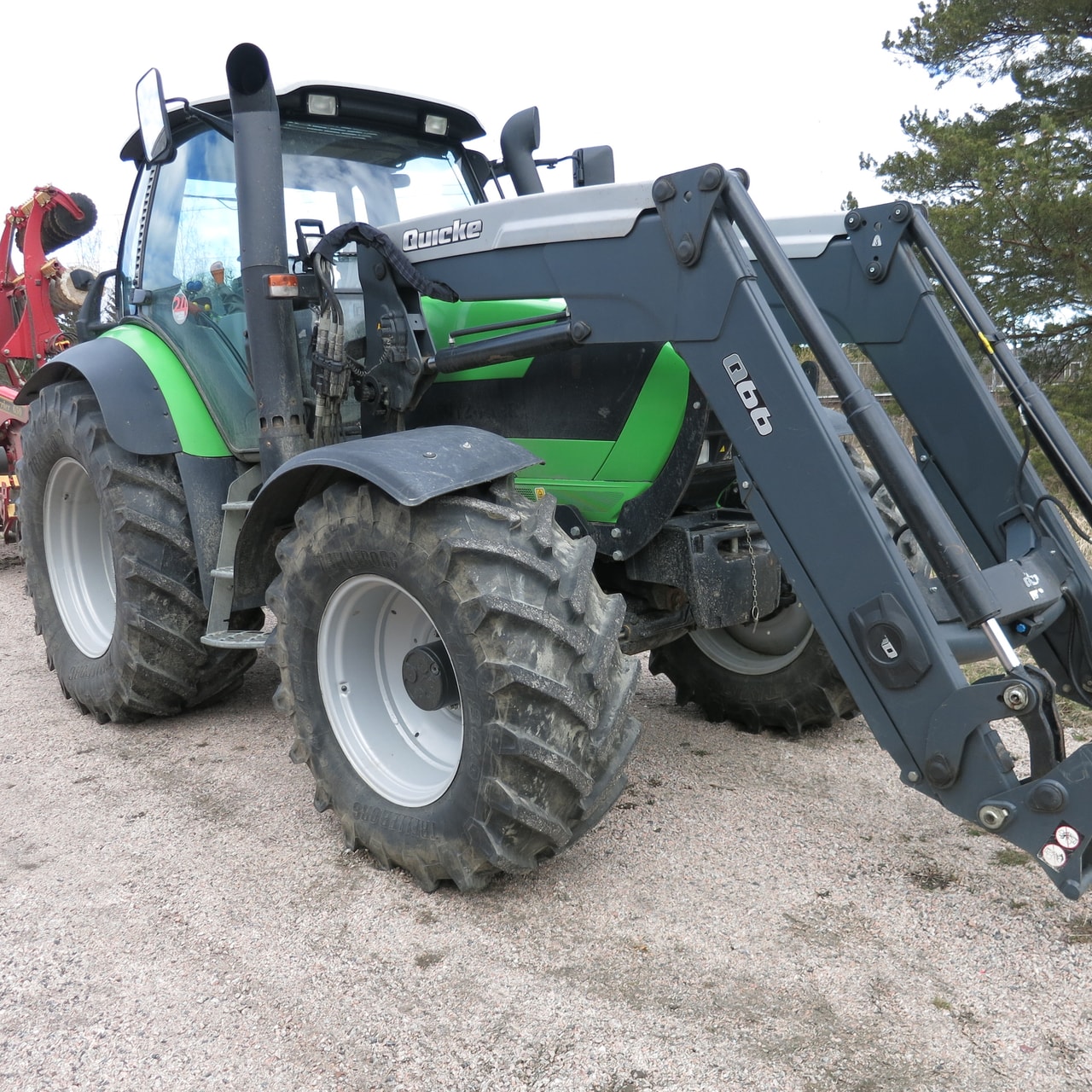

Deutz-Fahr M620 Tractor

Technical Specifications

Engine

Manufacturer: Deutz
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: 12-Valve
Fuel Type: Diesel
Induction Type: Turbocharged Intercooled
Cylinders: 6
Displacement (ci): 369.6
Bore (in): 3.98
Stroke (in): 4.96
Rated RPM: 2100
Power Output (hp): 155

Transmission

Type: Partial Power Shift
Forward Gears: 24
Reverse Gears: 24
Total Gears: 48

Dimensions

Length (in): 180.7
Width (in): -
Height (in): 115
Operating Weight (lb): 12730

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard Tires (ag)
Manufacture - End Year: 2009
Hitch Type: -
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
