Deutz-Fahr DX 86

Last Updated: June 2024

Overview

The Deutz-Fahr DX 86 tractor is a robust machine featuring a 4-cylinder turbo diesel engine that provides up to 82 horsepower and 2300 Rated RPM. This tractor boasts a 15-18 forward and 5-6 reverse transmission, allowing it to tackle various tasks with efficiency and ease. It measures 161.02 inches in length and 105.12 inches in height, with a weight range of 8268 to 9040 lbs. With AG type tires and a 4x2 2WD chassis, the DX86 brings reliable performance to the table. Despite its heavy-duty capabilities, specifics regarding its hitch system, PTO speeds, and various other features remain unknown.
Show more...

Key Specifications

Power Output: 82

Drive Type: 2WD

Operating Weight: 8268-9040

Fuel Type: Diesel

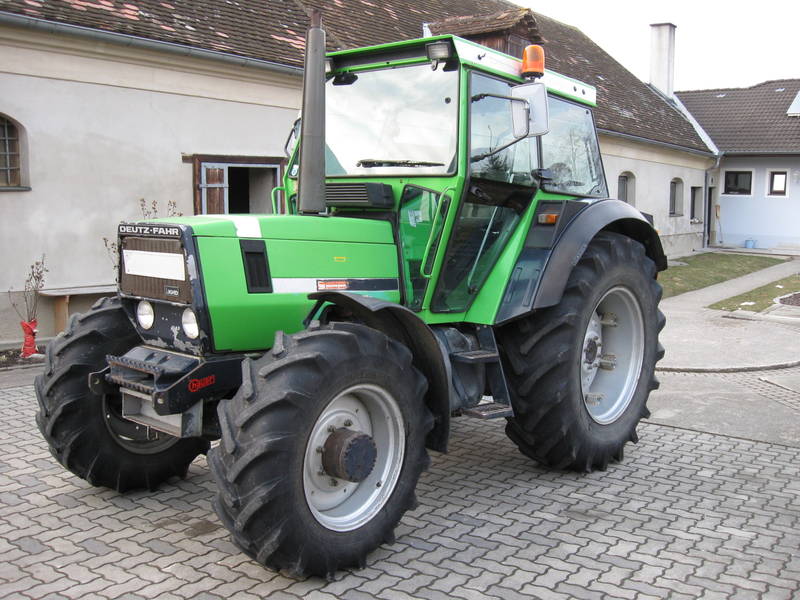

Image Gallery

Deutz-Fahr DX 86 Tractor Deutz-Fahr DX 86 Tractor Deutz-Fahr DX 86 Tractor Deutz-Fahr DX 86 Tractor Deutz-Fahr DX 86 Tractor Deutz-Fahr DX 86 Tractor Deutz-Fahr DX 86 Tractor Deutz-Fahr DX 86 Tractor Deutz-Fahr DX 86 Tractor Deutz-Fahr DX 86 Tractor

Technical Specifications

Engine

Manufacturer
Deutz
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbo
Cylinders
4
Displacement (ci)
249.33
Bore (in)
3.94
Stroke (in)
4.84
Rated RPM
2300
Power Output (hp)
82

Transmission

Type
-
Forward Gears
15-18
Reverse Gears
5 | 6
Total Gears
20-24

Dimensions

Length (in)
161.02
Width (in)
-
Height (in)
105.12
Operating Weight (lb)
8268-9040

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
AG
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
