Deutz-Fahr D 6507

Last Updated: June 2024

Overview

The Deutz-Fahr D 6507 is a durable utility tractor ideal for various farming tasks. It boasts a 4-cylinder, air-cooled diesel engine with a power output of up to 62 horsepower. The 9 forward and 4 reverse synchronized transmission ensures smooth operation and convenient gear changes on the go. This tractor is available in a 2WD configuration, with a powerful power steering system that ensures easy maneuverability in tight corners. The open center hydraulic system offers reliable performance for various attachments. Finally, this tractor featuring electric starter type ensures easy ignition, providing great convenience for any farmer.

Key Specifications

Category: Utility

Power Output: 62

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 6349 (2WD), 7055 (4WD)

Fuel Type: Diesel

Image Gallery

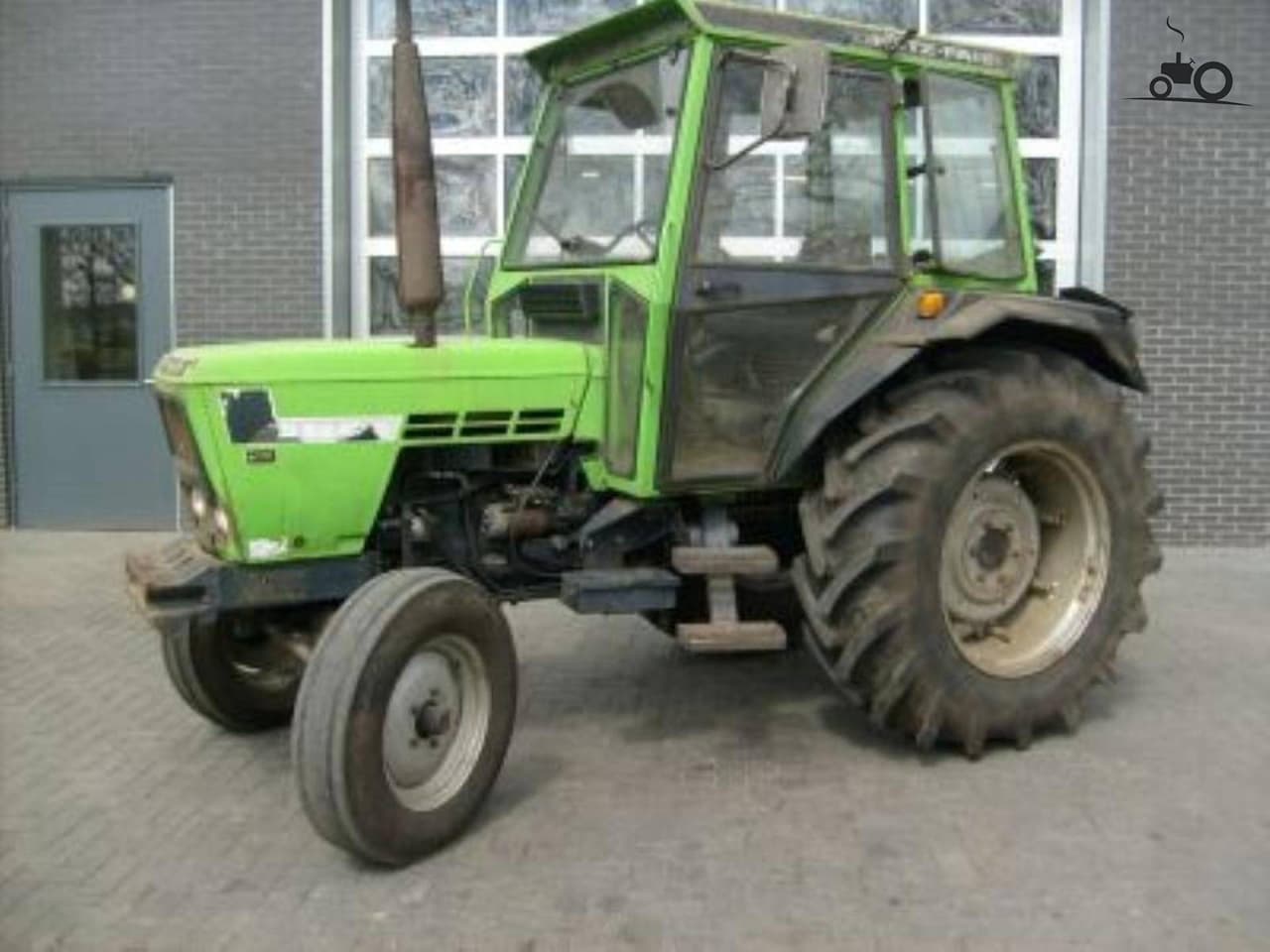

Deutz-Fahr D 6507 Tractor

Deutz-Fahr D 6507 vs. Similar Tractors

Power Output

Average

Greater than 59% of similar tractors.

Operating Weight

Above Average

Greater than 78% of similar tractors.

Technical Specifications

Engine

Manufacturer: Deutz-Fahr
Model: F4L 912
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 230
Bore (in): 3.94
Stroke (in): 4.72
Rated RPM: 2130
Power Output (hp): 62

Transmission

Type: Synchronized
Forward Gears: 9
Reverse Gears: 4
Total Gears: 13

Dimensions

Length (in): 144.1 (2WD), 140.6 (4WD)
Width (in): 82.3
Height (in): 97.6
Operating Weight (lb): 6349 (2WD), 7055 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 7.50 (Assumed from information)
Rear Tire Diameter (in): -
Rear Tire Width (in): 16.9 (Assumed from information)
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: II
Hitch Category: -
Hitch Position: Rear (Assumed by industry standard)
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
