Deutz-Fahr D 6207

Last Updated: June 2024

Overview

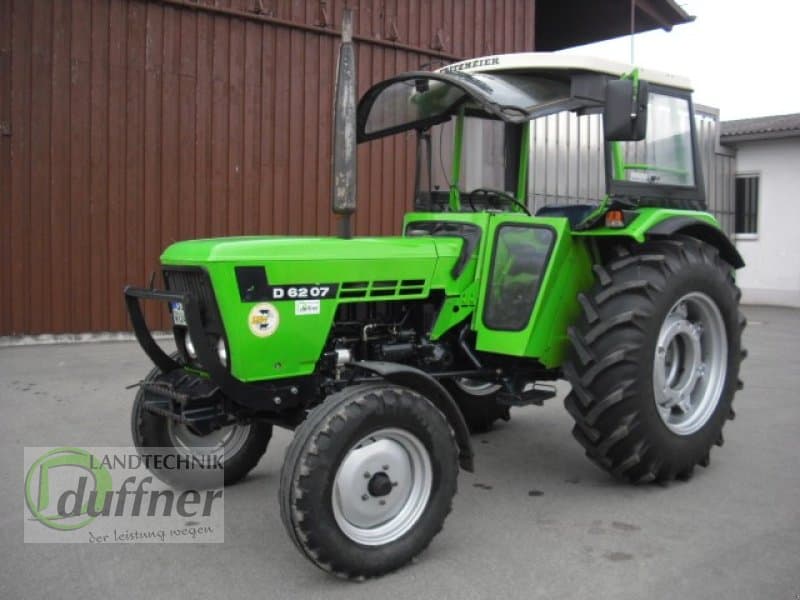

The Deutz-Fahr D 6207 is a two-wheel drive tractor characterized by its robust Deutz F4L 912 diesel engine. This 4-cylinder, air-cooled engine delivers a power output of 60hp and a rated RPM of 2050. The tractor features a dry dsic clutch and synchronized transmission with 9 forward and 4 reverse gears. The model is designed with an open operator station and an open center hydraulic system. It uses agricultural standard tires with the front tire width of 7.50 and the rear of 13.6. The D 6207 measures 148.03 inches in length and 97.64 inches in height, with an operating weight of 6835 lbs. Specifics regarding the manufacturer start and end years, hitch lift capacity, tire diameters and rim diameter, brake type, and additional features remain unconfirmed.
Show more...

Key Specifications

Power Output: 60

Transmission: Synchronized

Drive Type: Two-wheel drive

Operating Weight: 6835

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Deutz-Fahr
Model
F4L 912
Cooling Type
Air-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspirated
Cylinders
4
Displacement (ci)
230
Bore (in)
3.94
Stroke (in)
4.72
Rated RPM
2050
Power Output (hp)
60

Transmission

Type
Synchronized
Forward Gears
9
Reverse Gears
4
Total Gears
13

Dimensions

Length (in)
148.03
Width (in)
-
Height (in)
97.64
Operating Weight (lb)
6835

Power Take-Off (PTO)

PTO Type
540/1000
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
2WD
Drive Type
Two-wheel drive
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
Agriculture
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
