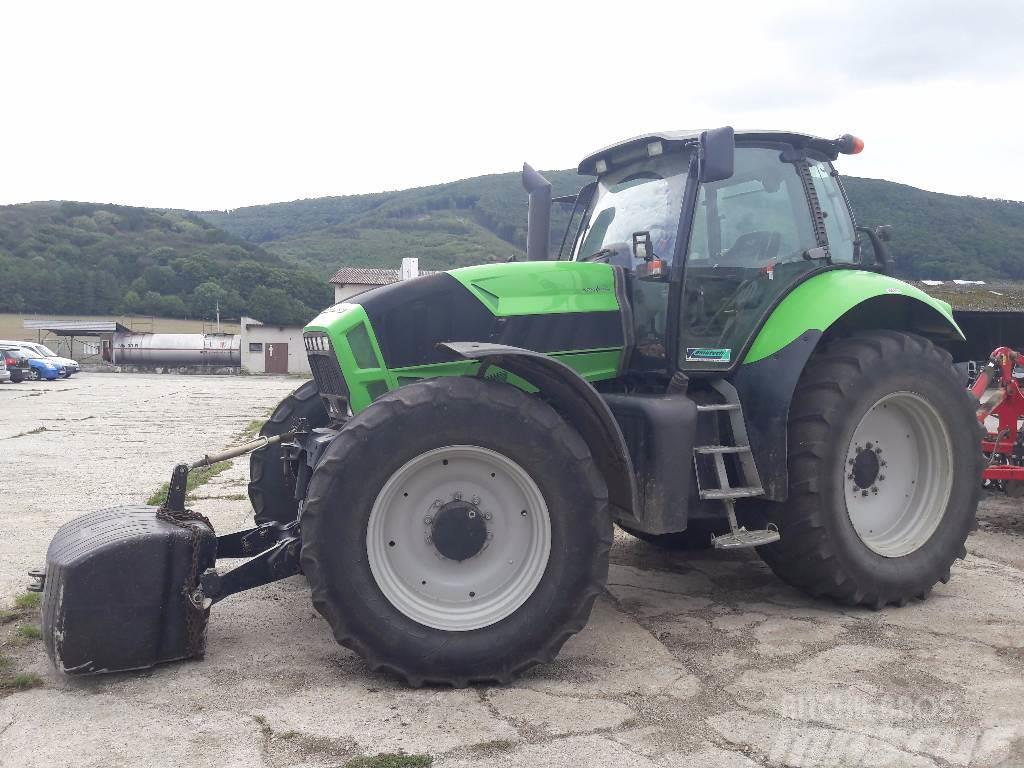

Deutz-Fahr Agrotron X720

Last Updated: June 2024

Overview

The Deutz-Fahr Agrotron X720 is a row-crop tractor known for its remarkable durability and performance. It features a Deutz TCD2013 L06 4V engine, which is turbocharged and intercooled. With 6 cylinders and a displacement of 436.1 ci, this liquid-cooled engine presents 265.5 horsepower at a rated RPM of 2300. The tractor has a 40-speed transmission and 4WD. Furthermore, it has a comfortable cab for the operator and uses an electric starter.
Show more...

Key Specifications

Category: Row Crop

Power Output: 265.5

Transmission: 40-speed

Drive Type: 4WD

Operating Weight: 23005

Fuel Type: Diesel

Image Gallery

Deutz-Fahr Agrotron X720 Tractor Deutz-Fahr Agrotron X720 Tractor Deutz-Fahr Agrotron X720 Tractor Deutz-Fahr Agrotron X720 Tractor Deutz-Fahr Agrotron X720 Tractor Deutz-Fahr Agrotron X720 Tractor Deutz-Fahr Agrotron X720 Tractor Deutz-Fahr Agrotron X720 Tractor

Deutz-Fahr Agrotron X720 vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Operating Weight
Above Average
Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz-Fahr
Model
Deutz TCD2013 L06 4V
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
436.1
Bore (in)
4.25
Stroke (in)
5.12
Rated RPM
2300
Power Output (hp)
265.5

Transmission

Type
40-speed
Forward Gears
40
Reverse Gears
40
Total Gears
40

Dimensions

Length (in)
212.6
Width (in)
108.3
Height (in)
128.7
Operating Weight (lb)
23005

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Radial
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load Sensing
