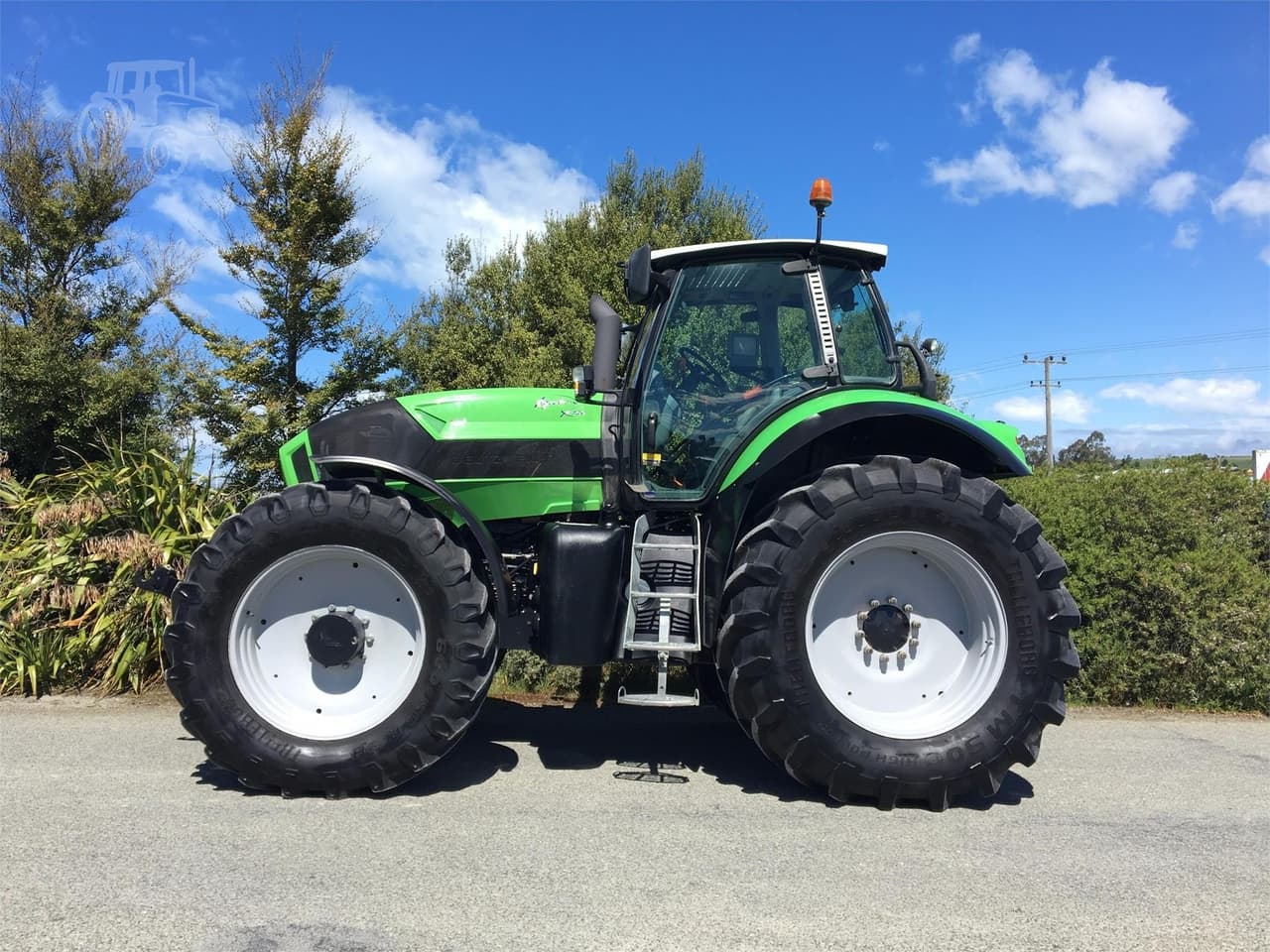

Deutz-Fahr Agrotron X710

Last Updated: September 2024

Overview

The Deutz-Fahr Agrotron X710 is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine made by Deutz. This engine puts out 215.9 hp, which is above average for tractors. It's turbocharged and intercooled, helping it work hard in tough conditions.

This tractor is big and heavy, weighing 23,005 lb. It has four-wheel drive and power steering, making it easy to handle for its size. The Agrotron X710 has a manual transmission with 40 forward and 40 reverse gears, giving farmers lots of options. It has a cab for the driver and uses a load-sensing hydraulic system. The tractor is 212.6 inches long, 108.3 inches wide, and 128.7 inches tall. It has a Category III hitch on the back for attaching big farm tools.
Show more...

Key Specifications

Category: Row Crop

Power Output: 216 hp (161.0 kW)

Transmission: Manual

Drive Type: 4WD

Operating Weight: 23005 lb (10435 kg)

Fuel Type: Diesel

Deutz-Fahr Agrotron X710 vs. Similar Tractors

Power Output

The Power Output for the Deutz-Fahr Agrotron X710 is Above Average. It is greater than 81% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Operating Weight

The Operating Weight for the Deutz-Fahr Agrotron X710 is Excellent. It is greater than 91% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Deutz-Fahr Agrotron X710 is Above Average. It is greater than 75% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Deutz-Fahr Agrotron X710 is Above Average. It is greater than 83% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Deutz
Model
TCD2013 L06 4V
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement
436 ci (7.1 L)
Bore
4.25 in (107.9 mm)
Stroke
5.12 in (130.0 mm)
Rated RPM
2300
Power Output
216 hp (161.0 kW)

Transmission

Type
Manual
Forward Gears
40
Reverse Gears
40
Total Gears
80

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
