Deutz-Fahr Agrotron TTV 1160

Last Updated: June 2024

Overview

The Deutz-Fahr Agrotron TTV 1160 is a durable and powerful tractor, sporting a turbocharged, liquid-cooled, 6-cylinder Deutz engine with 150 horsepower. It features an infinitely variable transmission, providing seamless, optimal control over movement and speed. Its chassis is a 4x4 MFWD 4WD, offering superior maneuverability and performance on different terrains. The tractor comes equipped with power steering for easy handling and an electric starter for reliable starts. It includes agricultural front and rear tires, enhancing its performance in the fields. The tractor has a wheelbase of 109.1 inches and an operating weight of 13781 lbs, emphasizing its robustness and resilience in tough working conditions.

Key Specifications

Power Output: 150

Transmission: Infinitely Variable Transmission

Drive Type: 4WD

Operating Weight: 13781

Fuel Type: Diesel

Image Gallery

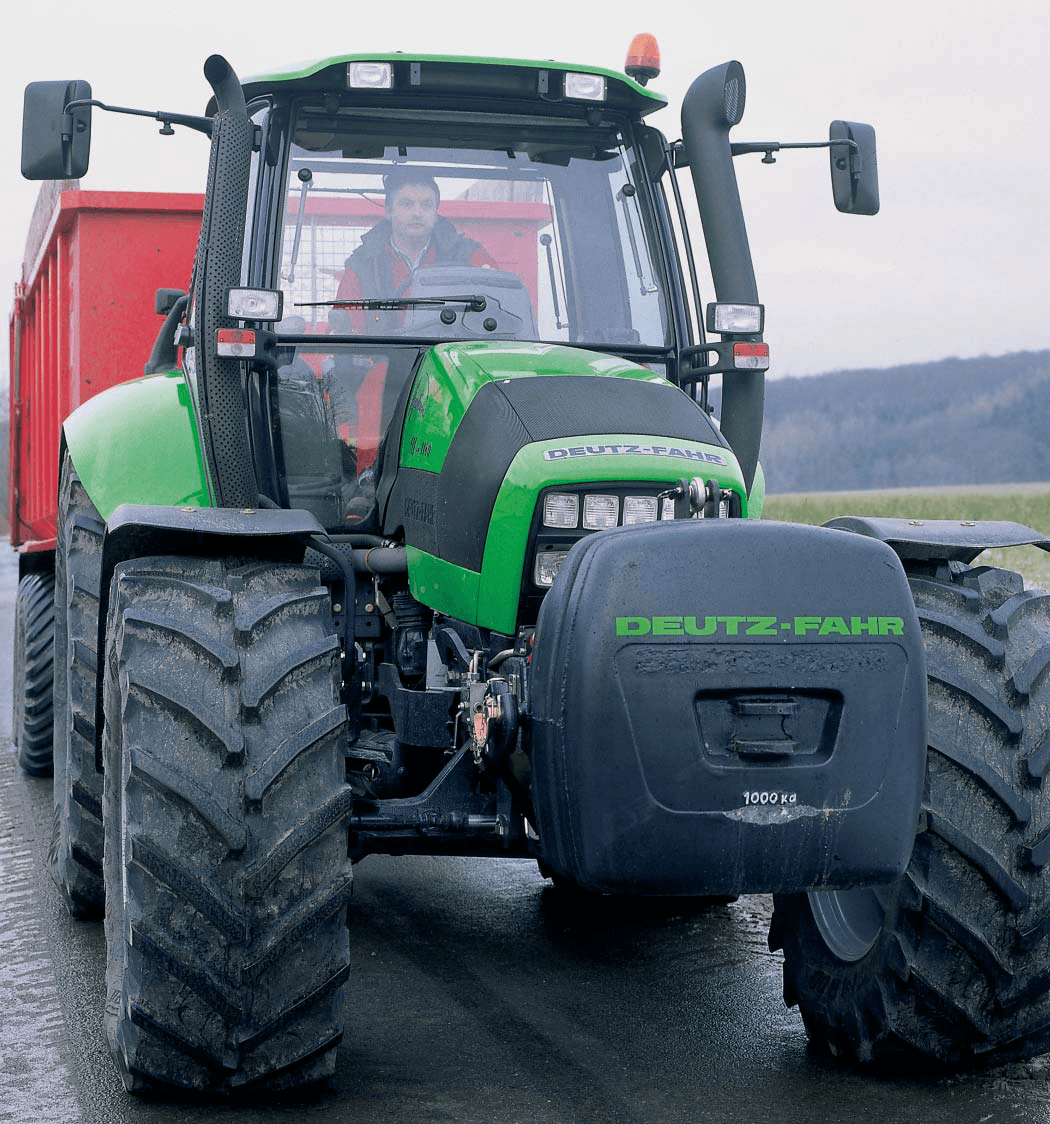

Deutz-Fahr Agrotron TTV 1160 Tractor

Technical Specifications

Engine

Manufacturer: Deutz
Model: BF6L1013E
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 436.1
Bore (in): 4.252
Stroke (in): 5.12
Rated RPM: 2300
Power Output (hp): 150

Transmission

Type: Infinitely Variable Transmission
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: Infinite

Dimensions

Length (in): 184.3
Width (in): -
Height (in): 116.1
Operating Weight (lb): 13781

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Rear Type III/II
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
