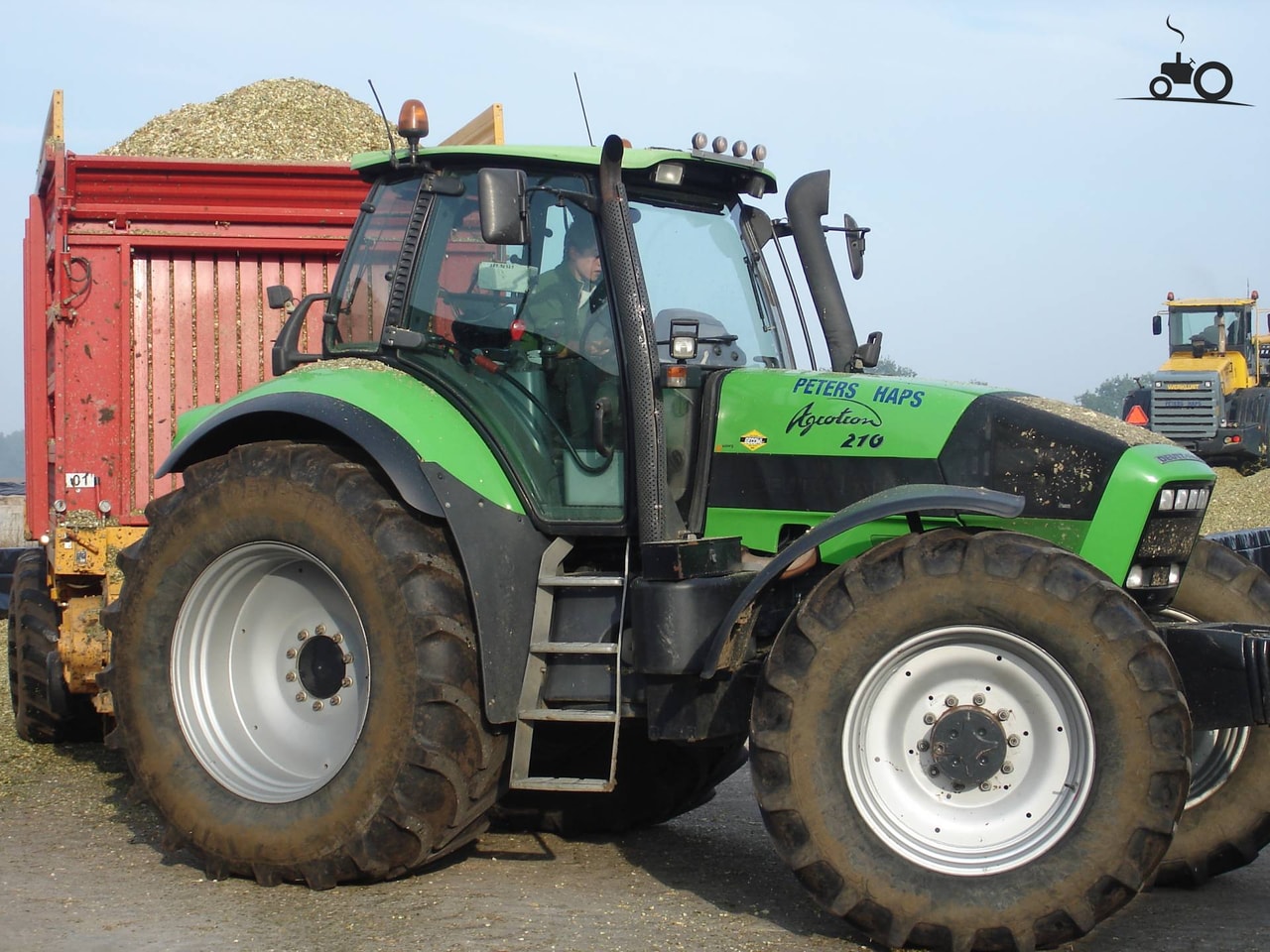

Deutz-Fahr Agrotron 210

Last Updated: June 2024

Overview

The Deutz-Fahr Agrotron 210 is a powerful tractor equipped with a 6 cylinder, liquid-cooled Deutz BF6M1013EC engine. It is turbocharged and intercooled, providing maximum horsepower of 207.9 hp. The tractor operates at a rated RPM of 2300 and employs an electric starter system. Its transmission is a four-speed power shift with 40 forward and reverse gears. The tractor is characterized by high performance and reliability, with a closed center load sensing hydraulic system. It is large and robust, with a length of 196.9 inches, a height of 128.2 inches, and an operating weight of 18541 lbs. Its primary application and specific functionalities are not provided in the available data.
Show more...

Key Specifications

Power Output: 207.9 (Maximum Power)

Transmission: four-speed power shift

Operating Weight: 18541

Fuel Type: Diesel

Image Gallery

Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor Deutz-Fahr Agrotron 210 Tractor

Technical Specifications

Engine

Manufacturer
Deutz
Model
BF6M1013EC
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
turbocharged intercooled
Cylinders
6
Displacement (ci)
436.1
Bore (in)
4.25
Stroke (in)
5.12
Rated RPM
2300
Power Output (hp)
207.9 (Maximum Power)

Transmission

Type
four-speed power shift
Forward Gears
40
Reverse Gears
40
Total Gears
-

Dimensions

Length (in)
196.9
Width (in)
-
Height (in)
128.2 (with cab)
Operating Weight (lb)
18541

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard/Optional Tires
Manufacture - End Year
-
Hitch Type
III
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed Center Load Sensing
