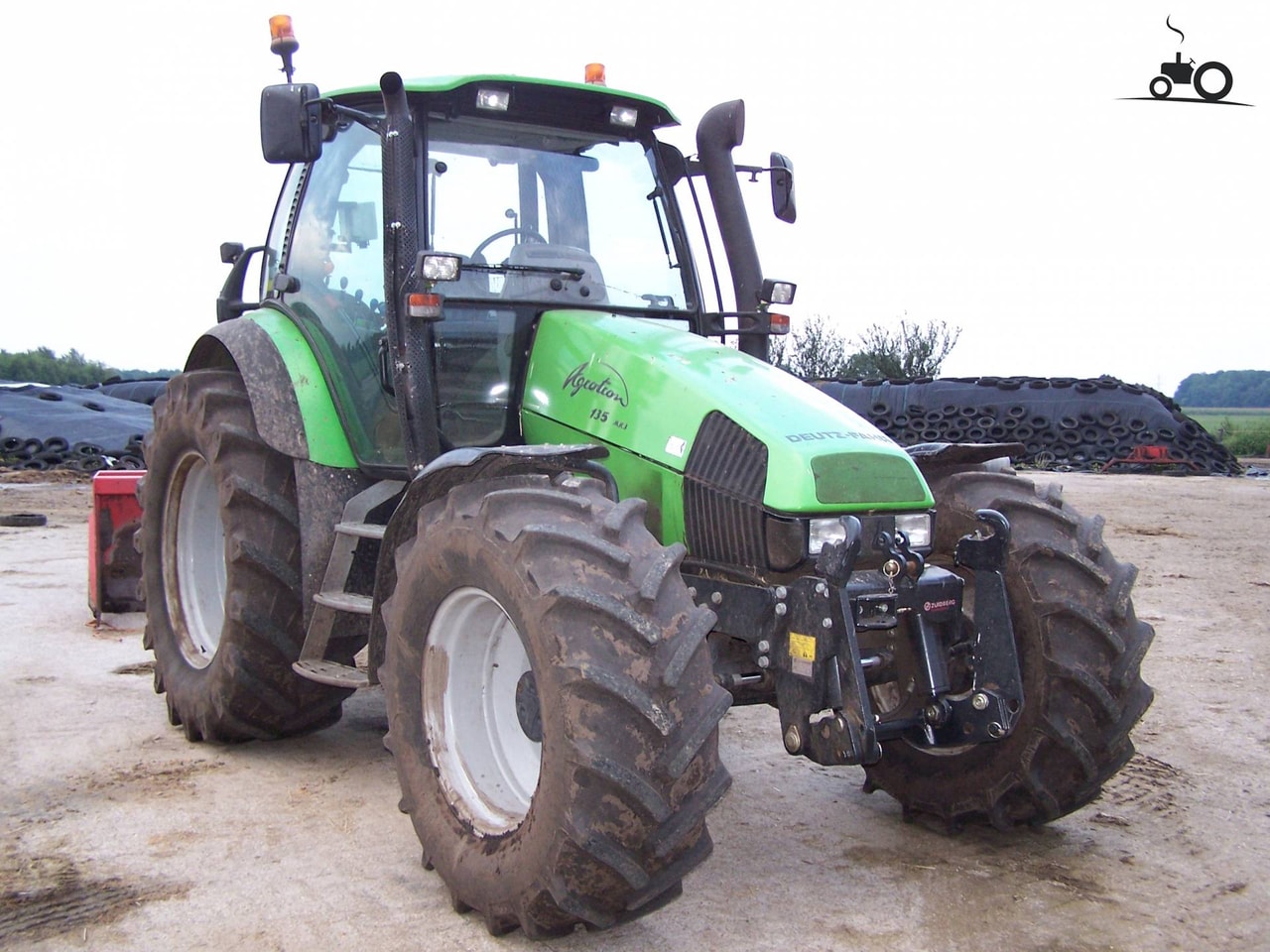

Deutz-Fahr Agrotron 135

Last Updated: June 2024

Overview

The Deutz-Fahr Agrotron 135 is a reliable row-crop tractor with a four-wheel drive chassis. It is equipped with a six-cylinder, turbocharged, Deutz engine with a displacement of 436 cubic inches, which outputs 135 horsepower at 2300 RPM. Despite its power, the engine is cooled with a liquid system to keep its performance optimal. It has a four-speed power shift transmission, with 24 gears for both forward and reverse driving, providing a wide range of speed and torque options. With the spacious cabin, operating the tractor is spacious and comfortable. Its large Ag tires ensure good traction and minimal soil compaction, adding efficiency to your farming operations. However, detailed information about its brake system, PTO type, and hydraulic system were unavailable.
Show more...

Key Specifications

Category: Row Crop

Power Output: 135

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: 11818

Fuel Type: Diesel

Image Gallery

Deutz-Fahr Agrotron 135 Tractor Deutz-Fahr Agrotron 135 Tractor Deutz-Fahr Agrotron 135 Tractor Deutz-Fahr Agrotron 135 Tractor Deutz-Fahr Agrotron 135 Tractor Deutz-Fahr Agrotron 135 Tractor Deutz-Fahr Agrotron 135 Tractor Deutz-Fahr Agrotron 135 Tractor Deutz-Fahr Agrotron 135 Tractor Deutz-Fahr Agrotron 135 Tractor

Deutz-Fahr Agrotron 135 vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Operating Weight
Average
Greater than 45% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
BF6L1013E
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
436
Bore (in)
4.252
Stroke (in)
5.12
Rated RPM
2300
Power Output (hp)
135

Transmission

Type
Four-speed power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
105.5
Width (in)
-
Height (in)
116.3
Operating Weight (lb)
11818

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
28
Front Tire Width (in)
16.8
Rear Tire Diameter (in)
38
Rear Tire Width (in)
20.8
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
III/II
Hitch Category
III/II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cabin
Starter Type
-
Brake Type
-
Hydraulic System Type
-
