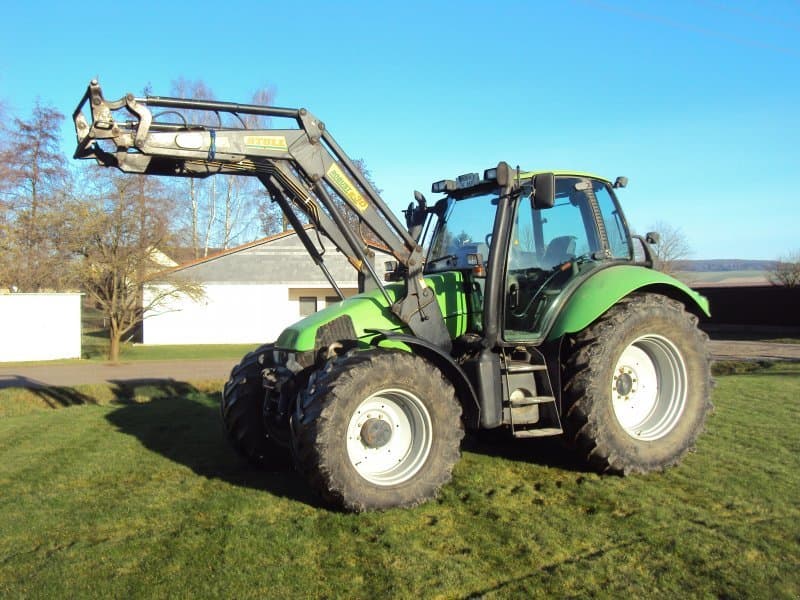

Deutz-Fahr Agrotron 120 MK3

Last Updated: June 2024

Overview

The Deutz-Fahr Agrotron 120 MK3 is a row-crop tractor designed for high performance in a variety of conditions. Equipped with a 4x4 MFWD 4WD chassis and a 24-speed transmission, this tractor provides ample power and control for a wide range of tasks. Its Deutz 6-cylinder turbo diesel engine offers impressive power output of 125 hp, with an engine displacement of 436 ci. Overall operation is further enhanced by a wheelbase of 109.05 inches and a working weight of 12590 lbs, ensuring stability and balance during use. It should be noted that specific details about numerous features such as the steering type, cooling type, and valve configuration are not available.
Show more...

Key Specifications

Category: Row Crop

Power Output: 125

Transmission: 24-speed

Drive Type: 4WD

Operating Weight: 12590

Fuel Type: Diesel

Image Gallery

Deutz-Fahr Agrotron 120 MK3 Tractor Deutz-Fahr Agrotron 120 MK3 Tractor Deutz-Fahr Agrotron 120 MK3 Tractor Deutz-Fahr Agrotron 120 MK3 Tractor Deutz-Fahr Agrotron 120 MK3 Tractor Deutz-Fahr Agrotron 120 MK3 Tractor Deutz-Fahr Agrotron 120 MK3 Tractor Deutz-Fahr Agrotron 120 MK3 Tractor

Deutz-Fahr Agrotron 120 MK3 vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Operating Weight
Average
Greater than 49% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
436
Bore (in)
4.252
Stroke (in)
5.12
Rated RPM
2300
Power Output (hp)
125

Transmission

Type
24-speed
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
187.4
Width (in)
-
Height (in)
112.6
Operating Weight (lb)
12590

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
20.8
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
