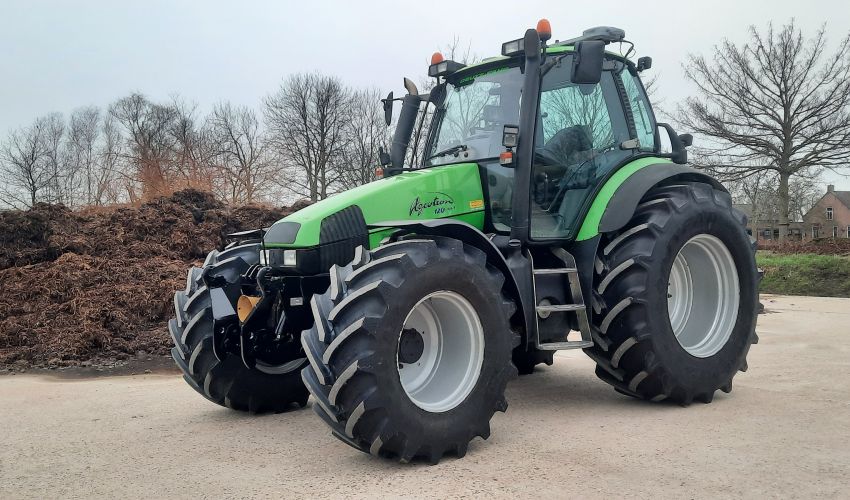

Deutz-Fahr Agrotron 120

Last Updated: June 2024

Overview

The Deutz-Fahr Agrotron 120 is a versatile utility and row-crop tractor. Equipped with a 6-cylinder, liquid-cooled Deutz engine, the tractor offers 120 horsepower. The engine is turbocharged, providing impressive torque and power. The Agrotron 120 features a 4x4 MFWD 4WD chassis and power steering for easy maneuverability. The tractor also includes a 24-speed four-speed power shift transmission, providing versatile control over speed and force. The cab is fitted for operator comfort and convenience, and the tractor weighs 12037 lbs with a height of 116.3 inches and a length of 180.6 inches. It is compatible with Category III/II rear hitches and uses an open center hydraulic system.
Show more...

Key Specifications

Category: Utility, Row Crop

Power Output: 120

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: 12037

Fuel Type: Diesel

Image Gallery

Deutz-Fahr Agrotron 120 Tractor Deutz-Fahr Agrotron 120 Tractor Deutz-Fahr Agrotron 120 Tractor Deutz-Fahr Agrotron 120 Tractor Deutz-Fahr Agrotron 120 Tractor Deutz-Fahr Agrotron 120 Tractor

Deutz-Fahr Agrotron 120 vs. Similar Tractors

Power Output
Above Average
Greater than 78% of similar tractors.
Operating Weight
Average
Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz-Fahr
Model
BF6L1013E, BF6M2012C
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
436
Bore (in)
4.252
Stroke (in)
5.12
Rated RPM
2300
Power Output (hp)
120

Transmission

Type
Four-speed power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
180.6
Width (in)
-
Height (in)
116.3
Operating Weight (lb)
12037

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
18.4
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category III/II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
